Recaro sportsitz-rueggstoedsfrigoering for BMW 3 Series E21 320 (1979)

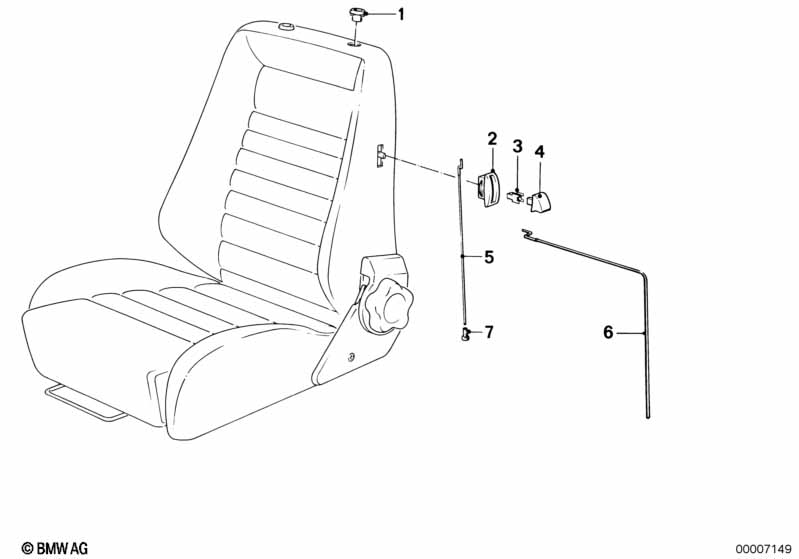

This Recaro sportsitz-rueggstoedsfrigoering technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hylsa | 4 | 05/1979 | 52101875831 | $6.67 | Avslutad | Shop at ECS Tuning | |||
| 02 | Skydd | 4 | 05/1979 | 52101883322 | $2.29 | Avslutad | Shop at ECS Tuning | |||
| 03 | Klammer | 4 | 52101901942 | $0.39 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Handtag | 4 | 05/1979 | 52101883321 | $2.09 | Shop at ECS Tuning | ||||
| 05 | REP | L=304MM | 4 | 09/1981 | 52101901940 | $8.85 | Avslutad | Shop at ECS Tuning | ||
| 07 | Nippel | 2 | 52101901941 | $1.88 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
