Stol fram stoppning och klädsel for BMW 5 Series E39 525i (2003)

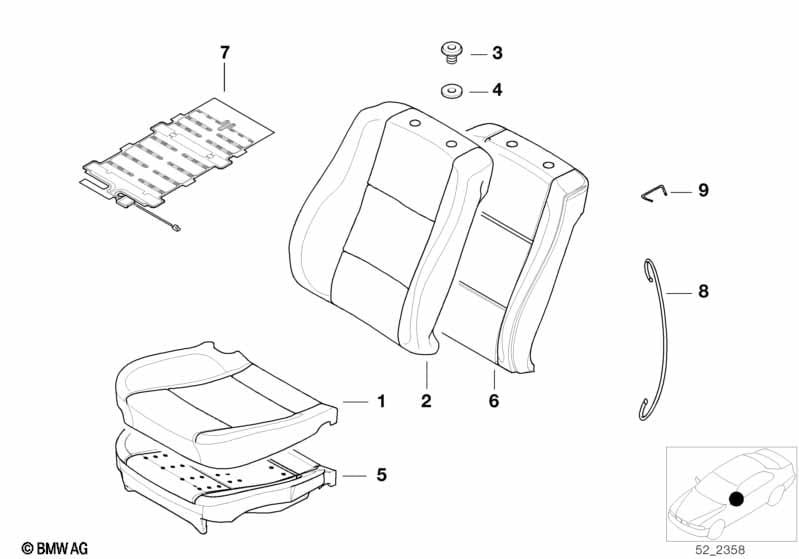

This Stol fram stoppning och klädsel technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Utförande med stoluppvärmning OCKSA FOER VEHICLES UTAN Stoluppvärmning |
|||||||||
| För fordon med Rips diagonal |
F4=Ja |
|||||||||
| 01 | Klädsel sits tyg | F4AT ANTHRAZIT | 2 | 09/1998 | 52108251052 | $272.30 | Shop at ECS Tuning | |||
| 01 | Klädsel sits tyg | F4TT GRAU | 2 | 09/1998 | 52108251055 | $272.30 | Shop at ECS Tuning | |||
| 01 | Klädsel sits tyg | F4EG ENGL.GRUEN | 2 | 09/2001 | 52107053518 | $272.30 | Avslutad | Shop at ECS Tuning | ||
| 01 | Klädsel sits tyg | F4DL MARINEBLAU | 2 | 09/2001 | 52108251053 | $272.30 | Avslutad | Shop at ECS Tuning | ||
| För fordon med Konstläder |
K4=Ja |
|||||||||
| 01 | Klädsel sits konstleeder | K4SN SANDBEIGE | 2 | 09/1998 | 52108253773 | $290.77 | Avslutad | Shop at ECS Tuning | ||
| 01 | Klädsel sits konstleeder | K4SW SCHWARZ | 2 | 09/1998 | 52108253774 | $290.77 | Shop at ECS Tuning | |||
| För fordon med Läder Highline |
V6=Ja |
|||||||||
| 01 | Klädsel sits laeder | V6SW SCHWARZ | 2 | 09/2001 | 52107045570 | $719.82 | Avslutad | Shop at ECS Tuning | ||
| 01 | Klädsel sits laeder | V6SN SANDBEIGE | 2 | 09/2001 | 52107045571 | $619.32 | Avslutad | Shop at ECS Tuning | ||
| 01 | Klädsel sits laeder | V6BG BURGUND | 2 | 09/2001 | 52107045572 | $719.82 | Avslutad | Shop at ECS Tuning | ||
| För fordon med Läder Mont./grundutrustn. |
N6=Ja |
|||||||||
| 01 | Klädsel sits laeder | N6SW SCHWARZ | 2 | 09/1998 | 52108253279 | $619.32 | Avslutad | Shop at ECS Tuning | ||
| 01 | Klädsel sits laeder | N6TT GRAU | 2 | 09/1998 | 52108253280 | $619.32 | Avslutad | Shop at ECS Tuning | ||
| 01 | Klädsel sits laeder | N6EG ENGL.GRUEN | 2 | 09/2001 | 52108253284 | $719.82 | Avslutad | Shop at ECS Tuning | ||
| För fordon med Läder Mont./grundutrustn. eller Standardläder montana |
N6=Ja O7=Ja |
|||||||||
| 01 | Klädsel sits laeder | N6SN,O7SN BEIGE | 2 | 09/1998 | 52108253282 | $619.32 | Avslutad | Shop at ECS Tuning | ||
| 01 | Klädsel sits laeder | N6GN,O7GN STEIN | 2 | 09/1998 | 52108253791 | $619.32 | Avslutad | Shop at ECS Tuning | ||
| 01 | Klädsel sits laeder | N6LG,O7LG LIGHT | 2 | 09/1998 | 52108253792 | $719.82 | Avslutad | Shop at ECS Tuning | ||
| För fordon med Konstläder |
K4=Ja |
|||||||||
| 02 | Klaedsel stoed konstläder | K4SN SANDBEIGE | 2 | 09/1998 | 52108253776 | $352.67 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaedsel stoed konstläder | K4SW SCHWARZ | 2 | 09/1998 | 52108253777 | $352.67 | Avslutad | Shop at ECS Tuning | ||
| För fordon med Läder Highline |
V6=Ja |
|||||||||
| 02 | Klaedsel stoed, laeder | V6SW SCHWARZ | 2 | 09/2001 | 52107045590 | $719.82 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaedsel stoed, laeder | V6SN SANDBEIGE | 2 | 09/2001 | 52107045591 | $719.82 | Shop at ECS Tuning | |||
| 02 | Klaedsel stoed, laeder | V6BG BURGUND | 2 | 09/2001 | 52107045592 | $719.82 | Shop at ECS Tuning | |||
| För fordon med Läder Mont./grundutrustn. |
N6=Ja |
|||||||||
| 02 | Klaedsel stoed, laeder | N6TT GRAU | 2 | 09/1998 | 52108253285 | $758.21 | Shop at ECS Tuning | |||
| 02 | Klaedsel stoed, laeder | N6SW SCHWARZ | 2 | 09/1998 | 52108253286 | $758.21 | Avslutad | Shop at ECS Tuning | ||
| För fordon med Rips diagonal och Standardstol manuellt justerbar |
F4=Ja =Ja |
|||||||||
| 02 | Klädsel stoed tyg | F4DL MARINEBLAU | 2 | 09/2001 | 52107051734 | $272.30 | Avslutad, +stomme | Shop at ECS Tuning | ||
| 02 | Klädsel stoed tyg | F4EG ENGL.GRUEN | 2 | 09/2001 | 52107051735 | $272.30 | Avslutad | Shop at ECS Tuning | ||
| För fordon med Rips diagonal och Standardstol manuellt justerbar High-version |
F4=Ja =Ja |
|||||||||
| 02 | Klädsel stoed tyg | F4AT ANTHRAZIT | 2 | 09/1998 | 52108251077 | $272.30 | Shop at ECS Tuning | |||
| 02 | Klädsel stoed tyg | F4TT GRAU | 2 | 09/1998 | 52108251080 | $272.30 | Avslutad | Shop at ECS Tuning | ||
| För fordon med Rips diagonal och Standardstol manuellt justerbar Low-version |
F4=Ja =Ja |
|||||||||
| 02 | Klädsel stoed tyg | F4AT ANTHRAZIT | 2 | 09/1998 | 52107051732 | $272.30 | Shop at ECS Tuning | |||
| 02 | Klädsel stoed tyg | F4TT GRAU | 2 | 09/1998 | 52107051733 | $272.30 | Shop at ECS Tuning | |||
| För fordon med Läder Mont./grundutrustn. eller Standardläder montana |
N6=Ja O7=Ja |
|||||||||
| 02 | Klaedsel stoed, laeder | N6SN,O7SN BEIGE | 2 | 09/1998 | 52108253288 | $758.21 | Shop at ECS Tuning | |||
| 02 | Klaedsel stoed, laeder | N6LG,O7LG LIGHT | 2 | 09/1998 | 52108258917 | $719.82 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaedsel stoed, laeder | N6GN,O7GN STEIN | 2 | 09/1998 | 52108258918 | $758.21 | Avslutad | Shop at ECS Tuning | ||
| För fordon med Stolsjustering elektrisk med memory och Rips diagonal |
S459A=Ja F4=Ja |
|||||||||
| 02 | Klädsel stoed tyg | F4AT ANTHRAZIT | 2 | 09/1998 | 52108251077 | $272.30 | Shop at ECS Tuning | |||
| 02 | Klädsel stoed tyg | F4TT GRAU | 2 | 09/1998 | 52108251080 | $272.30 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klädsel stoed tyg | F4EG ENGL.GRUEN | 2 | 09/2001 | 52107074945 | $272.30 | Avslutad, +stomme | Shop at ECS Tuning | ||
| 02 | Klädsel stoed tyg | F4DL MARINEBLAU | 2 | 09/2001 | 52108251078 | $262.26 | Avslutad, +stomme | Shop at ECS Tuning | ||
| 03 | Skydd | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 03 | Skydd | GRAU | 4 | 52108192443 | $1.66 | Shop at ECS Tuning | ||||
| 03 | Skydd | SANDBEIGE | 4 | 52108192444 | $1.12 | Shop at ECS Tuning | ||||
| 04 | Avtaeckning underdel | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| För fordon med Läder Mont./grundutrustn. eller Standardläder montana |
N6=Ja O7=Ja |
|||||||||
| 05 | Underlag sits fram | 2 | 09/1998 | 52108242779 | $150.27 | Shop at ECS Tuning | ||||
| För fordon med Rips diagonal eller Tyg flock eller Konstläder eller Läder Highline |
F4=Ja F6=Ja K4=Ja V6=Ja |
|||||||||
| 05 | Underlag sits fram | 2 | 09/1998 | 52108238404 | $150.27 | Shop at ECS Tuning | ||||
| För fordon med Rips diagonal eller Tyg flock |
F4=Ja F6=Ja |
|||||||||
| 06 | Underlag ryggstoed fram | 2 | 09/1998 | 52108261079 | $75.05 | Avslutad | Shop at ECS Tuning | |||
| För fordon med Rips diagonal eller Konstläder eller Läder Mont./grundutrustn. eller Standardläder montana eller Läder Highline |
F4=Ja K4=Ja N6=Ja O7=Ja V6=Ja |
|||||||||
| 06 | Underlag ryggstoed fram | 2 | 09/1998 | 52108261078 | $165.32 | Avslutad | Shop at ECS Tuning | |||
| För fordon med basstol (standard stol) |
=Ja |
|||||||||
| 07 | Sensormatta passagerarsaete-identifier. | 2 | 09/1998 | 65778383550 | $124.53 | Shop at ECS Tuning | ||||
| 08 | Taksbygel | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
| 09 | Klammer | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
