Sits fram saeteram/blaendare for BMW 5 Series E39 525i (2003)

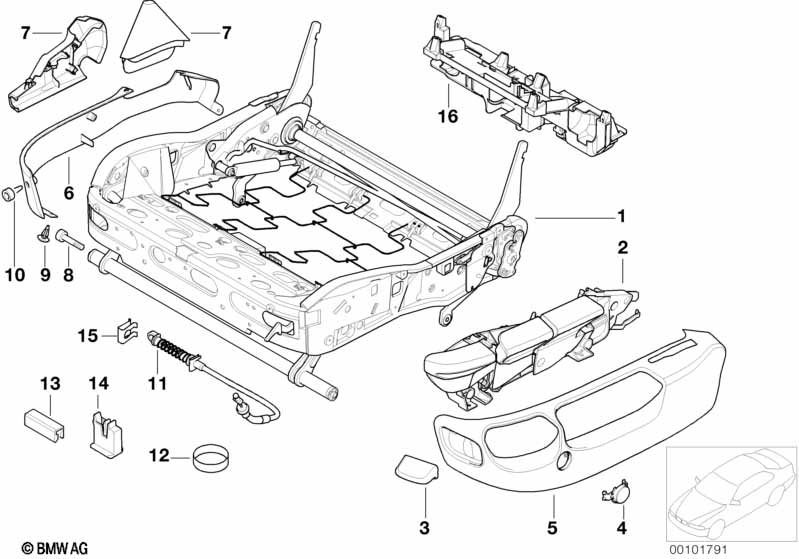

This Sits fram saeteram/blaendare technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| PASSAR ENDASTI TILL PASSAGERARSIDA | ||||||||||
| 01 | Stolram höger | 1 | 52108196288 | $369.88 | Avslutad | Shop at ECS Tuning | ||||
| PASSAR ENDASTI TILL FOERARSIDA | ||||||||||
| 01 | Stolram vänster | 1 | 52108196285 | $421.47 | Shop at ECS Tuning | |||||
| För fordon med Aktivt stol f förarsida PASSAR ENDASTI TILL FOERARSIDA |
S451A=Ja |
|||||||||
| 01 | Stolram vänster | 1 | 52107032759 | Avslutad | Shop at ECS Tuning | |||||
| För fordon med Sitslutningsjustering |
=Ja |
|||||||||
| 01 | Stolram höger | 1 | 52108196286 | $421.47 | Shop at ECS Tuning | |||||
| 02 | Reglageenheit vänster | 1 | 52108150021 | $49.65 | Shop at ECS Tuning | |||||
| 02 | Reglageenheit höger | 1 | 52108150022 | $49.65 | Shop at ECS Tuning | |||||
| För fordon med Sitslutningsjustering |
=Ja |
|||||||||
| 03 | Arm vänster | 1 | 52108150059 | $3.91 | Shop at ECS Tuning | |||||
| 03 | Vred hoeger | 1 | 52108150060 | $3.91 | Shop at ECS Tuning | |||||
| 04 | Sats bländare | GRAU | 1 | 52108219226 | $12.22 | Shop at ECS Tuning | ||||
| 04 | Sats bländare | SCHWARZ | 1 | 52108219227 | $12.22 | Shop at ECS Tuning | ||||
| 04 | Sats bländare | MARINEBLAU | 1 | 52108219228 | $12.22 | Avslutad | Shop at ECS Tuning | |||
| 04 | Sats bländare | SANDBEIGE | 1 | 52108219230 | $12.22 | Avslutad | Shop at ECS Tuning | |||
| FOER FOERAR OCH PASSAGERAR |
||||||||||
| 05 | Avtaeckning yttre | SCHWARZ | 1 | 52107057988 | $45.18 | Shop at ECS Tuning | ||||
| 05 | Avtaeckning yttre | GRAU | 1 | 52107057989 | $45.18 | Shop at ECS Tuning | ||||
| 05 | Avtaeckning yttre | MARINEBLAU | 1 | 52107057990 | $45.18 | Shop at ECS Tuning | ||||
| 05 | Avtaeckning yttre | SANDBEIGE | 1 | 52107057991 | $45.18 | Shop at ECS Tuning | ||||
| 05 | Avtaeckning yttre | ENGLISCHGRUEN | 1 | 52107057993 | $45.18 | Shop at ECS Tuning | ||||
| 05 | Avtaeckning yttre | TOBACCO | 1 | 52107057994 | +stomme | Shop at ECS Tuning | ||||
| 05 | Avtaeckning yttre | PEARLBEIGE | 1 | 52107057995 | $45.18 | +stomme | Shop at ECS Tuning | |||
| 05 | Avtaeckning yttre | BURGUND | 1 | 52107057996 | $45.18 | +stomme | Shop at ECS Tuning | |||
| 06 | Plaat inre | SCHWARZ | 1 | 10/1997 | 52107058018 | $21.32 | +stomme | Shop at ECS Tuning | ||
| 06 | Plaat inre | GRAU | 1 | 10/1997 | 52107058019 | $21.32 | +stomme | Shop at ECS Tuning | ||
| 06 | Plaat inre | SANDBEIGE | 1 | 10/1997 | 52107058021 | $21.32 | +stomme | Shop at ECS Tuning | ||
| passar endasti till PYROTEKNISK GOERDEL SPAENNA |
||||||||||
| 07 | Avtäckning vänster | SCHWARZ | 1 | 10/1997 | 52108238487 | $5.60 | Shop at ECS Tuning | |||
| 07 | Avtaeckning hoeger | SCHWARZ | 1 | 10/1997 | 52108238488 | $5.60 | Shop at ECS Tuning | |||
| 08 | Skruv ctt | M6X20 ROT | 4 | 52108150020 | $0.46 | Shop at ECS Tuning | ||||
| 09 | Clip | 6 | 52101873544 | $0.20 | Shop at ECS Tuning | |||||
| 10 | Skruv ctt | M4X10 | 8 | 07146977086 | $0.48 | Shop at ECS Tuning | ||||
| 11 | Bowdenkabel horizontalverstelling | 2 | 52108162230 | $11.58 | Avslutad | Shop at ECS Tuning | ||||
| 12 | Gummiring | 2 | 52101843100 | $0.54 | Shop at ECS Tuning | |||||
| 13 | Gejdsko | 2 | 54128105582 | $2.95 | Shop at ECS Tuning | |||||
| 14 | Clip | GRUEN | 2 | 52108221512 | $0.35 | Shop at ECS Tuning | ||||
| 15 | Klammer | 2 | 52108132161 | $0.35 | Shop at ECS Tuning | |||||
| 16 | Hållare foer aggregat | 1 | 52107032922 | $25.48 | Avslutad, +stomme | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
