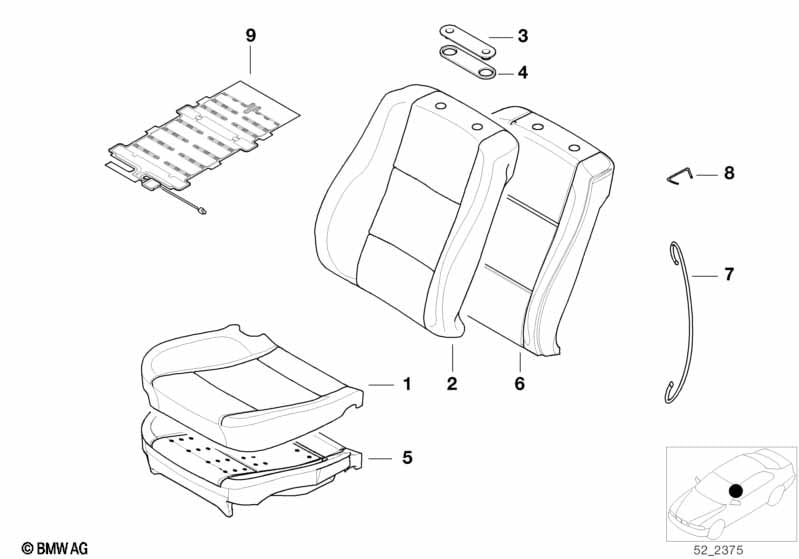

This Stol fram stoppn. & klädsel komfortstol technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.

Nr.	Beskrivning	Tillägg	antal	Från	Reservdelsnummer	Pris	Notering
i	Utförande med stoluppvärmning OCKSA FOER VEHICLES UTAN Stoluppvärmning
	För fordon med Komfortsaete med minne och Läder Highline	S456A=Ja V6=Ja
01	Klädsel sits laeder	V6SW SCHWARZ	2	09/2001	52107045570	$719.82	Avslutad	Shop at ECS Tuning
01	Klädsel sits laeder	V6SN SANDBEIGE	2	09/2001	52107045571	$619.32	Avslutad	Shop at ECS Tuning
01	Klädsel sits laeder	V6BG BURGUND	2	09/2001	52107045572	$719.82	Avslutad	Shop at ECS Tuning
	För fordon med Komfortsaete med minne och Läder Mont./grundutrustn.	S456A=Ja N6=Ja
01	Klädsel sits laeder	N6SW SCHWARZ	2	09/1998	52108253279	$619.32	Avslutad	Shop at ECS Tuning
01	Klädsel sits laeder	N6TT GRAU	2	09/1998	52108253280	$619.32	Avslutad	Shop at ECS Tuning
	För fordon med Komfortsaete med minne och Rips diagonal	S456A=Ja F4=Ja
01	Klädsel sits tyg	F4AT ANTHRAZIT	2	09/1998	52108251052	$272.30		Shop at ECS Tuning
01	Klädsel sits tyg	F4TT GRAU	2	09/1998	52108251055	$272.30		Shop at ECS Tuning
01	Klädsel sits tyg	F4EG ENGL.GRUEN	2	09/2001	52107053518	$272.30	Avslutad	Shop at ECS Tuning
01	Klädsel sits tyg	F4DL MARINEBLAU	2	09/2001	52108251053	$272.30	Avslutad	Shop at ECS Tuning
	För fordon med Komfortsaete med minne och Läder Mont./grundutrustn. eller Standardläder montana	S456A=Ja N6=Ja O7=Ja
01	Klädsel sits laeder	N6SN,O7SN BEIGE	2	09/1998	52108253282	$619.32	Avslutad	Shop at ECS Tuning
01	Klädsel sits laeder	N6GN,O7GN STEIN	2	09/1998	52108253791	$619.32	Avslutad	Shop at ECS Tuning
01	Klädsel sits laeder	N6LG,O7LG LIGHT	2	09/1998	52108253792	$719.82	Avslutad	Shop at ECS Tuning
	För fordon med Komfortsaete med minne och Läder Highline	S456A=Ja V6=Ja
02	Klaedsel stoed, laeder	V6SW SCHWARZ	2	09/2001	52107045574	$719.82	Avslutad	Shop at ECS Tuning
02	Klaedsel stoed, laeder	V6SN SANDBEIGE	2	09/2001	52107045575	$719.82	Avslutad	Shop at ECS Tuning
02	Klaedsel stoed, laeder	V6BG BURGUND	2	09/2001	52107045576	$719.82	Avslutad, +stomme	Shop at ECS Tuning
	För fordon med Komfortsaete med minne och Läder Mont./grundutrustn.	S456A=Ja N6=Ja
02	Klaedsel stoed, laeder	N6TT,N8TT GRAU	2	09/1998	52108253741	$758.21		Shop at ECS Tuning
02	Klaedsel stoed, laeder	N6SW,N8SW SCHW.	2	09/1998	52108253742	$758.21	Avslutad	Shop at ECS Tuning
02	Klaedsel stoed, laeder	N6AI,N8AI AUBER	2	09/1998	52108253746		Avslutad, +stomme	Shop at ECS Tuning
02	Klaedsel stoed, laeder	N6SY,N8SY BRAUN	2	09/1998	52108253747		Avslutad	Shop at ECS Tuning
	För fordon med Komfortsaete med minne och Rips diagonal	S456A=Ja F4=Ja
02	Klädsel stoed tyg	F4AT ANTHRAZIT	2	09/1998	52108251087	$272.30	Avslutad	Shop at ECS Tuning
02	Klädsel stoed tyg	F4TT GRAU	2	09/1998	52108251090	$272.30	Avslutad	Shop at ECS Tuning
02	Klädsel stoed tyg	F4EG ENGL.GRUEN	2	09/2001	52107054345	$272.30	Avslutad, +stomme	Shop at ECS Tuning
02	Klädsel stoed tyg	F4DL MARINEBLAU	2	09/2001	52108251088	$272.30	Avslutad	Shop at ECS Tuning
	För fordon med Komfortsaete med minne och Läder Mont./grundutrustn. eller Standardläder montana	S456A=Ja N6=Ja O7=Ja
02	Klaedsel stoed, laeder	N6SN,O7SN BEIGE	2	09/1998	52108253744	$758.21	Avslutad	Shop at ECS Tuning
02	Klaedsel stoed, laeder	N6GN,O7GN GRUEN	2	09/1998	52108253793	$719.82	Avslutad	Shop at ECS Tuning
02	Klaedsel stoed, laeder	N6LG,O7LG GELB	2	09/1998	52108253794	$719.82	Avslutad	Shop at ECS Tuning
03	Skydd	SCHWARZ	2		52108169457	$8.69		Shop at ECS Tuning
03	Skydd	GRAU	2		52108189146	$8.69	Avslutad	Shop at ECS Tuning
03	Skydd	MARINEBLAU	2		52108189147	$7.48	Avslutad	Shop at ECS Tuning
03	Skydd	SANDBEIGE	2		52108189148	$8.90		Shop at ECS Tuning
03	Skydd	DUNKELGRUEN	2		52108189150	$7.48	Avslutad	Shop at ECS Tuning
03	Skydd	TOBACCOBRAUN	2		52108260434	$7.48	Avslutad	Shop at ECS Tuning
03	Skydd	PEARLBEIGE	2		52108260435	$7.48		Shop at ECS Tuning
04	Underlägg		2		52108169458	$2.54		Shop at ECS Tuning
	För fordon med Rips diagonal	F4=Ja
05	Underlag sits fram		2	09/1998	52108238404	$150.27		Shop at ECS Tuning
	För fordon med Läder Nappa Heritage helläder eller Partiell läder Nappa Heritage eller Läder Mont./grundutrustn. eller Läder Bubinga eller Läder Highline	M1=Ja M3=Ja N6=Ja N9=Ja V6=Ja
05	Underlag sits fram		2	09/1998	52108242779	$150.27		Shop at ECS Tuning
06	Underlag ryggstoed fram		2		52108150029	$165.32		Shop at ECS Tuning
07	Taksbygel	L=1800MM	X		52208129296	$1.14		Shop at ECS Tuning
08	Klammer	1,6X20X10,1	X		52101945543	$0.09		Shop at ECS Tuning
09	Sensormatta passagerarsaete-identifier.		1	09/1998	65778383550	$124.53		Shop at ECS Tuning

Notering

Avslutad = delen tillverkas inte längre.
+stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
