Klädsel sits bak for BMW 5 Series E12 525 (1976)

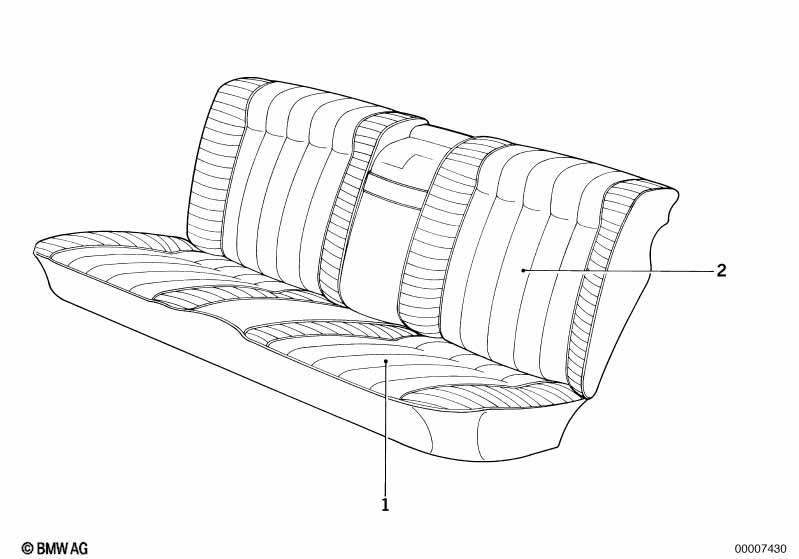

This Klädsel sits bak technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Version 722-723 | |||||||||
| 01 | Klaed.sits laeder beige bak | 0303 | 1 | 09/1975 | 02/1980 | 52201850630 | Avslutad | Shop at ECS Tuning | ||
| 01 | Klaed.sits laeder schwarz bak | 0113/9090 | 1 | 09/1975 | 52201882862 | Avslutad | Shop at ECS Tuning | |||
| 01 | Klaed.sits laeder marineblau bak | 0115/4141 | 1 | 09/1975 | 52201882863 | Avslutad | Shop at ECS Tuning | |||
| 01 | Klaed.sits laeder farngrün bak | 0114/0046 | 1 | 09/1975 | 52201882865 | Avslutad | Shop at ECS Tuning | |||
| 01 | Klaed.sits laeder nylonbraun bak | 0116/0087 | 1 | 09/1975 | 52201882866 | Avslutad | Shop at ECS Tuning | |||
| 02 | Klaed.stoed laeder schwarz vaenster | 9090 | 1 | 09/1975 | 02/1980 | 52201850679 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder veloursrot vaenster | 2727 | 1 | 09/1975 | 02/1980 | 52201850683 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder veloursrot hoeger | 2727 | 1 | 09/1975 | 02/1980 | 52201850684 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder beige vaenster | 0303 | 1 | 09/1975 | 02/1980 | 52201850687 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder beige hoeger | 0303 | 1 | 09/1975 | 02/1980 | 52201850688 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder hellgrau vaenster | 0045 | 1 | 09/1975 | 02/1980 | 52201864621 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder hellgrau hoeger | 0045 | 1 | 09/1975 | 02/1980 | 52201864622 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder nylonbraun vaenster | 0087 | 1 | 09/1975 | 02/1980 | 52201868691 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder nylonbraun hoeger | 0087 | 1 | 09/1975 | 02/1980 | 52201868692 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder schwarz vaenster | 0113/9090 | 1 | 09/1975 | 02/1980 | 52201882875 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder hellgrau vaenster | 0117/0045 | 1 | 09/1975 | 02/1980 | 52201882879 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder nylonbraun vaenster | 0116/0087 | 1 | 09/1975 | 02/1980 | 52201882883 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder nylonbraun hoeger | 0116/0087 | 1 | 09/1975 | 02/1980 | 52201882884 | Avslutad | Shop at ECS Tuning | ||
| 02 | Klaed.stoed laeder schwarz vaenster | 0113/9090 | 1 | 09/1975 | 52201882876 | Avslutad | Shop at ECS Tuning | |||
| 02 | Klaed.stoed laeder marineblau vaenster | 0115/4141 | 1 | 09/1975 | 52201882877 | Avslutad | Shop at ECS Tuning | |||
| 02 | Klaed.stoed laeder marineblau hoeger | 0115/4141 | 1 | 09/1975 | 52201882878 | Avslutad | Shop at ECS Tuning | |||
| 02 | Klaed.stoed laeder farngrün vaenster | 0114/0046 | 1 | 09/1975 | 52201882881 | Avslutad | Shop at ECS Tuning | |||
| 02 | Klaed.stoed laeder farngrün hoeger | 0114/0046 | 1 | 09/1975 | 52201882882 | Avslutad | Shop at ECS Tuning | |||
Notering
- Avslutad = delen tillverkas inte längre.
