Sits fram sken f.sits elektr./detaljen for BMW 3 Series E46 318i (2004)

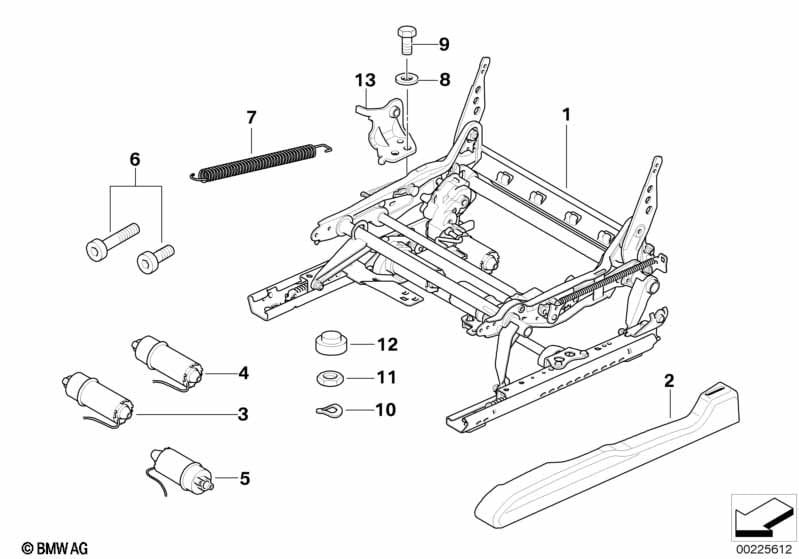

This Sits fram sken f.sits elektr./detaljen technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med Stolsjustering elektrisk med memory |
S459A=Ja |
|||||||||
| 01 | Stolmekanism elektr.höger | 1 | 03/2003 | 52107111872 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| För fordon med Stolsjustering elektrisk med memory PASSAR ENDASTI TILL PASSAGERARSIDA |
S459A=Ja |
|||||||||
| 01 | Stolmekanism elektr.vänster | 1 | 03/2003 | 52107111869 | $652.08 | Avslutad | Shop at ECS Tuning | |||
| För fordon med Sitsjustering fram elektr. |
S458A=Ja |
|||||||||
| 01 | Stolmekanism elektr.vänster | 1 | 03/2003 | 52107111869 | $652.08 | Avslutad | Shop at ECS Tuning | |||
| 02 | Plaat sken foer saete vaenster | SCHWARZ | 1 | 52108226431 | $5.40 | Shop at ECS Tuning | ||||
| 02 | Plaat sken foer saete hoeger | SCHWARZ | 1 | 52108226432 | $5.40 | Shop at ECS Tuning | ||||
| 03 | Ställdon | 1 | 03/2003 | 52107112648 | $105.13 | Shop at ECS Tuning | ||||
| För fordon med Stolsjustering elektrisk med memory |
S459A=Ja |
|||||||||
| 03 | Justerbar drift horizontalverstelling | 1 | 03/2003 | 52107112654 | $105.13 | Shop at ECS Tuning | ||||
| 04 | Ställdon | 1 | 03/2003 | 52107112648 | $105.13 | Shop at ECS Tuning | ||||
| För fordon med Stolsjustering elektrisk med memory |
S459A=Ja |
|||||||||
| 04 | Ställdon ryggstödsjustering | 1 | 03/2003 | 52107112656 | $105.13 | Shop at ECS Tuning | ||||
| 05 | Ställdon | 1 | 03/2003 | 52107112648 | $105.13 | Shop at ECS Tuning | ||||
| För fordon med Stolsjustering elektrisk med memory |
S459A=Ja |
|||||||||
| 05 | Sitshoejdjustering elektr. | 1 | 03/2003 | 52107111910 | $105.13 | Avslutad | Shop at ECS Tuning | |||
| 06 | Fästdetaljsats stoljustering | 2 | 52108251431 | $14.00 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Fjäder ryggstödsjustering | 2 | 52108251439 | $5.07 | Avslutad | Shop at ECS Tuning | ||||
| 08 | Underlagsplaata | 10-200 HV-ZNNIV | 4 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 09 | Sexkantskruv | M10 | 4 | 52108211438 | $0.71 | Shop at ECS Tuning | ||||
| 10 | Fjäderbricka | B10-ZNS3 | 4 | 07/2005 | 07119904463 | Shop at ECS Tuning | ||||
| 10 | Bricka | D=10MM | 4 | 07119904201 | $1.02 | Shop at ECS Tuning | ||||
| 11 | Sexkantmutter med ribbar | M10 | 4 | 07149156956 | $0.56 | Shop at ECS Tuning | ||||
| 12 | Skydd | 4 | 52108119867 | $0.21 | Shop at ECS Tuning | |||||
| 13 | Set hållare bältessträckare vänster | 1 | 52107110697 | $24.97 | Avslutad | Shop at ECS Tuning | ||||
| 13 | Set hållare bältessträckare höger | 1 | 52107110698 | $24.97 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
