Säte fram komplett stol for BMW 3 Series E46 318i (2004)

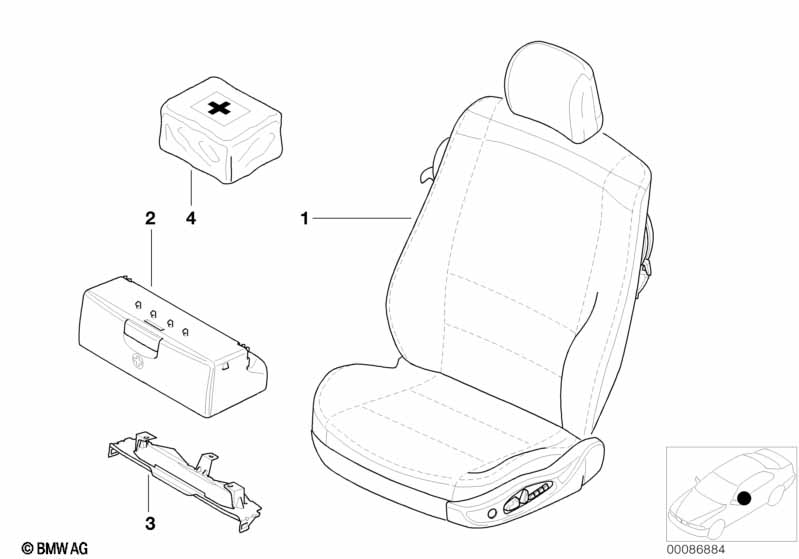

This Säte fram komplett stol technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Det finns inga kompletta stolar för beställning! Stolen måste byggas upp av enskilda delar i enlighet med ETK. |
|||||||||
| 01 | Delen kan ej beställas separat | 1 | 00000000000 | Shop at ECS Tuning | ||||||
| 02 | Förbandslåda | 1 | 52109164602 | Avslutad | Shop at ECS Tuning | |||||
| 02 | Foerbands laeda tom | 1 | 52107044958 | $23.19 | Avslutad | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Hållare foerbandslaada | 1 | 52107045018 | $8.91 | Shop at ECS Tuning | |||||
| 03 | Hållare foerbandslaada | 1 | 52107045018 | $8.91 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Foerbands laeda tom | 1 | 52107044958 | $23.19 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Första hjälpen-set plastpåse | DIN 13164 | 1 | 51477158344 | +stomme | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
