Stol bak stolram genomlastning for BMW 3 Series E46 318i (2004)

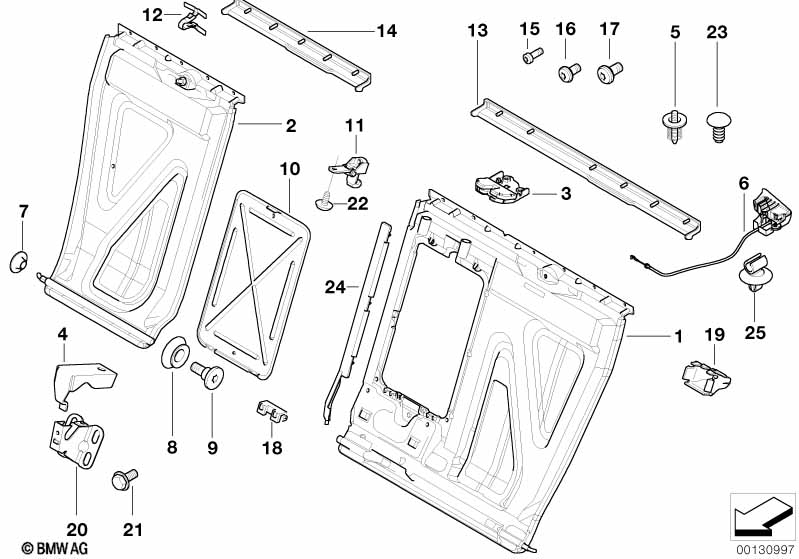

This Stol bak stolram genomlastning technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med Nedfaellbart baksaete |
S465A=Ja |
|||||||||
| 01 | Ram ryggstöd vänster | 1 | 52208225745 | $172.71 | Shop at ECS Tuning | |||||
| 02 | Ram ryggstöd höger | 1 | 52208225746 | $93.04 | Shop at ECS Tuning | |||||
| 03 | Laas bak vaenster | 1 | 52208209035 | $35.12 | Shop at ECS Tuning | |||||
| 03 | Laas bak hoeger | 1 | 52208209036 | $35.12 | Shop at ECS Tuning | |||||
| 04 | Bygel | 1 | 51718215277 | $8.97 | Shop at ECS Tuning | |||||
| För fordon med Nedfaellbart baksaete |
S465A=Ja |
|||||||||
| 05 | Utkastare | 1 | 52208240452 | $9.47 | Shop at ECS Tuning | |||||
| 06 | Reglageenheit vänster | 1 | 52208225839 | $41.94 | Shop at ECS Tuning | |||||
| 06 | Reglageenheit höger | 1 | 52208225840 | $41.94 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Bussning | 1 | 52208146789 | $0.77 | Shop at ECS Tuning | |||||
| 08 | Lagerbussning | 2 | 52207008615 | $0.87 | Shop at ECS Tuning | |||||
| 09 | Skruv | M10X16 | 2 | 52208176245 | $1.38 | Avslutad | Shop at ECS Tuning | |||
| 10 | Lucka skidsäck | 1 | 52207059048 | $21.66 | Avslutad | Shop at ECS Tuning | ||||
| 11 | Laasanordning skidsaeck | 1 | 52208099507 | $12.13 | Avslutad | Shop at ECS Tuning | ||||
| 12 | Klammer | X | 52208196069 | $0.55 | Shop at ECS Tuning | |||||
| 13 | Kantskydds vaenster | SCHWARZ | 1 | 52208248173 | $13.97 | Avslutad | Shop at ECS Tuning | |||
| 13 | Kantskydds vaenster | HELLBEIGE | 1 | 52208248174 | $13.83 | Avslutad | Shop at ECS Tuning | |||
| 13 | Kantskydds vaenster | GRAU | 1 | 52208248175 | $13.83 | Avslutad | Shop at ECS Tuning | |||
| 13 | Kantskydds vaenster | MINTGRUEN | 1 | 52208248177 | $12.28 | Avslutad | Shop at ECS Tuning | |||
| 14 | Kantskydds hoeger | SCHWARZ | 1 | 52208248179 | $10.13 | Avslutad | Shop at ECS Tuning | |||
| 14 | Kantskydds hoeger | HELLBEIGE | 1 | 52208248180 | $10.05 | Shop at ECS Tuning | ||||
| 14 | Kantskydds hoeger | GRAU | 1 | 52208248181 | $10.05 | Avslutad | Shop at ECS Tuning | |||
| 14 | Kantskydds hoeger | MINTGRUEN | 1 | 52208248183 | $9.82 | Avslutad | Shop at ECS Tuning | |||
| 15 | Skruv | M5X12 | X | 52208176214 | $0.55 | Avslutad | Shop at ECS Tuning | |||
| 16 | Linsskruv | M6X16 | X | 07149165135 | $0.22 | Shop at ECS Tuning | ||||
| 17 | Linsskruv | M8X14 | X | 52208099651 | $0.77 | Avslutad | Shop at ECS Tuning | |||
| För fordon med Skidsaeck |
S464A=Ja |
|||||||||
| 18 | Gaangjaern | 2 | 52207000334 | $2.37 | Shop at ECS Tuning | |||||
| För fordon med Nedfaellbart baksaete |
S465A=Ja |
|||||||||
| 19 | Clips vit | 2 | 52207157536 | $2.17 | Shop at ECS Tuning | |||||
| 20 | Lagerbock ryggstoed mitten | 1 | 41128240628 | $5.98 | Avslutad | Shop at ECS Tuning | ||||
| 21 | Sexkantskruv med bricka | M8X20-ZNS3 | X | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 22 | Tryckknopp | SCHWARZ | 1 | 52208099548 | $0.50 | Shop at ECS Tuning | ||||
| 23 | Clip | 2 | 52208099676 | $0.63 | Shop at ECS Tuning | |||||
| 24 | Skärm | 1 | 52208099510 | $6.25 | Avslutad | Shop at ECS Tuning | ||||
| 25 | Kabelhållare | 4 | 72118177700 | $0.52 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Stol bak stolram genomlastning?
- This technical diagram illustrates the Stol bak stolram genomlastning within the Säten group for the 3 Series E46 318i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Ram ryggstöd vänster (Part #52208225745).
- Which models use the hardware listed in this Stol bak stolram genomlastning?
- The hardware and components featured in the Stol bak stolram genomlastning are specific to the 3 Series E46 318i produced during 2004. These technical specifications ensure that parts like the Ram ryggstöd vänster (52208225745) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stol bak stolram genomlastning assembly?
- Each item in the Stol bak stolram genomlastning corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Ram ryggstöd vänster by locating its position on the schematic, which then links to the official BMW part number 52208225745 for the Säten section.
