Stol fram elsystem & drivningar ryggstöd for BMW 5 Series E60 525i (2005)

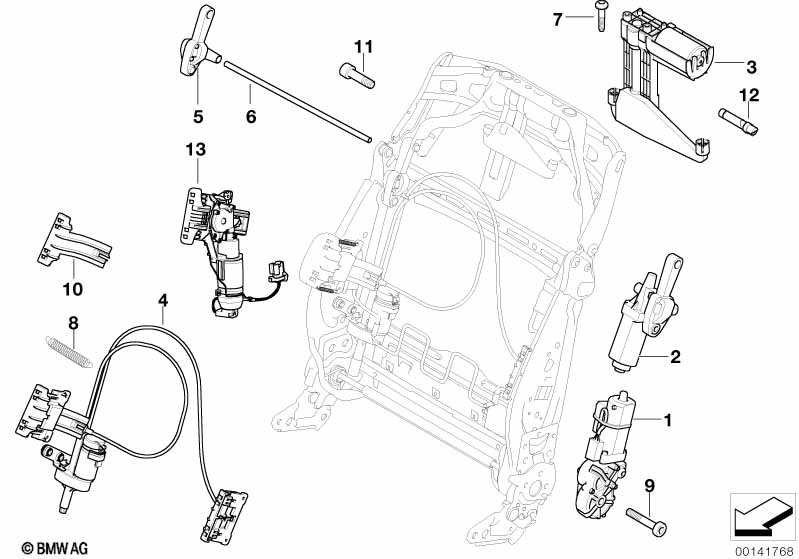

This Stol fram elsystem & drivningar ryggstöd technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Bassäte delvis elektriskt | ||||||||||
| 01 | Drivanordning ryggstödsjustering | 1 | 67317114121 | $114.43 | Shop at ECS Tuning | |||||
| För fordon med Komfortsaete med minne |
S456A=Ja |
|||||||||
| 01 | Drivanordning ryggstödsjustering | 2 | 67317075946 | $139.48 | Shop at ECS Tuning | |||||
| För fordon med Stolsjustering elektrisk med memory eller Sportstol PASSAR ENDASTI TILL FOERARSIDA |
S459A=Ja S481A=Ja |
|||||||||
| 01 | Drivanordning ryggstödsjustering | 1 | 67317075946 | $139.48 | Shop at ECS Tuning | |||||
| För fordon med Stolsjustering elektrisk med memory eller Sportstol PASSAR ENDASTI TILL PASSAGERARSIDA |
S459A=Ja S481A=Ja |
|||||||||
| 01 | Drivanordning ryggstödsjustering | 1 | 67319146333 | $116.19 | Shop at ECS Tuning | |||||
| För fordon med Komfortsaete med minne |
S456A=Ja |
|||||||||
| 02 | Drivanordning stödhuvudjustering memory | 2 | 67317065193 | $118.35 | Shop at ECS Tuning | |||||
| 03 | Drivanord. huvudstoed höjdinställn.minne | 2 | 09/2007 | 52107111364 | $205.37 | Shop at ECS Tuning | ||||
| För fordon med Stolsjustering elektrisk med memory eller Sportstol PASSAR ENDASTI TILL FOERARSIDA |
S459A=Ja S481A=Ja |
|||||||||
| 03 | Drivanord. huvudstoed höjdinställn.minne | 1 | 09/2007 | 67317121096 | $221.04 | Shop at ECS Tuning | ||||
| För fordon med Stolsjustering elektrisk med memory eller Sportstol PASSAR ENDASTI TILL PASSAGERARSIDA |
S459A=Ja S481A=Ja |
|||||||||
| 03 | Drivanordning huvudstoed hoejdinställn. | 1 | 09/2007 | 67317121095 | $181.13 | Avslutad | Shop at ECS Tuning | |||
| För fordon med Komfortsaete med minne |
S456A=Ja |
|||||||||
| 04 | Drivning ryggstödsbreddsjustering | 2 | 52107005422 | $324.12 | Shop at ECS Tuning | |||||
| 05 | Växellåda | 2 | 52107068054 | $63.49 | Shop at ECS Tuning | |||||
| 06 | Flexibel axel | 2 | 52107068055 | $31.51 | Shop at ECS Tuning | |||||
| 07 | Torx skruv | M5X25-A2-70 | 4 | 07129900395 | $1.58 | Shop at ECS Tuning | ||||
| För fordon med Komfortsaete med minne |
S456A=Ja |
|||||||||
| 08 | Fjäder | 4 | 52107068049 | $24.27 | Shop at ECS Tuning | |||||
| 09 | Skruv | T30 M6X40 | 4 | 52107068050 | $11.69 | Shop at ECS Tuning | ||||
| För fordon med Komfortsaete med minne |
S456A=Ja |
|||||||||
| 10 | Glidbygel | 2 | 52107116703 | $10.38 | Shop at ECS Tuning | |||||
| 10 | Gliddel vaenster | 1 | 52107119629 | $5.00 | Shop at ECS Tuning | |||||
| 10 | Gliddel hoeger | 1 | 52107119630 | $5.00 | Shop at ECS Tuning | |||||
| 11 | Skruv | M6 | 4 | 67317068056 | $11.17 | Shop at ECS Tuning | ||||
| 12 | Gaspatron | 2 | 52107068057 | $112.83 | Shop at ECS Tuning | |||||
| För fordon med M multifunktionsäte |
S4MAA=Ja |
|||||||||
| 13 | Breddjustering aktiv vänster | 2 | 52107919697 | $135.69 | Shop at ECS Tuning | |||||
| För fordon med Komfortsaete med minne |
S456A=Ja |
|||||||||
| 13 | Breddjustering aktiv vänster | 1 | 52107919697 | $135.69 | Shop at ECS Tuning | |||||
| 13 | Breddjustering aktiv höger | 1 | 52107919698 | $135.69 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
