Stol bak stolram basstol for BMW 2 Series F22 LCI 230i (2020)

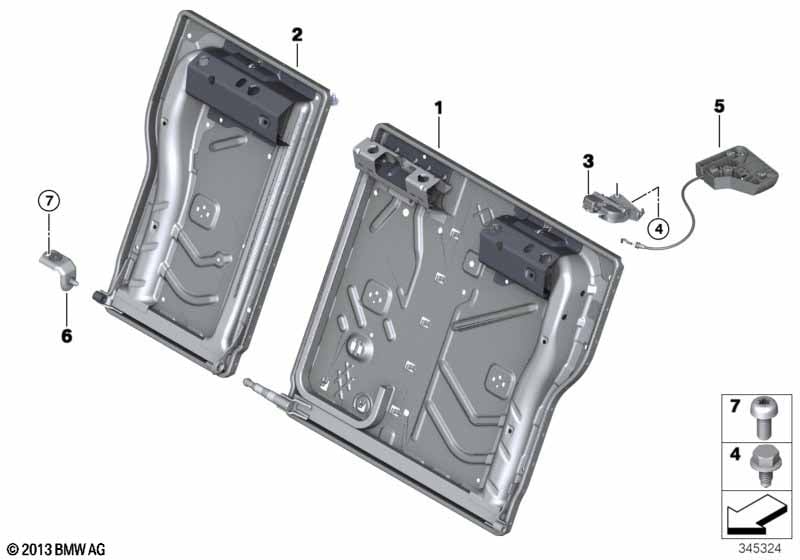

This Stol bak stolram basstol technical drawing provides a detailed breakdown of the assembly for the 2 Series F22 LCI 230i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ram ryggstöd vänster | 1 | 52207274535 | Shop at ECS Tuning | ||||||
| 02 | Ram ryggstöd höger | 1 | 52207267864 | Shop at ECS Tuning | ||||||
| 03 | Lås vänster | 1 | 52207112863 | $35.49 | +stomme | Shop at ECS Tuning | ||||
| 03 | Lås höger | 1 | 52207112864 | $35.49 | +stomme | Shop at ECS Tuning | ||||
| 04 | Sexkantskruv | M8X12 | 4 | 07119907416 | Shop at ECS Tuning | |||||
| 05 | Upplåsningsenhet | 2 | 52207314012 | Shop at ECS Tuning | ||||||
| 06 | Lagerbock ryggstoed sidledes | 2 | 52207274538 | Shop at ECS Tuning | ||||||
| 07 | Linsskruv | M10X22 | 2 | 07149148299 | Shop at ECS Tuning |
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
