Soeltak for BMW 1502-2002tii 2002 (1972)

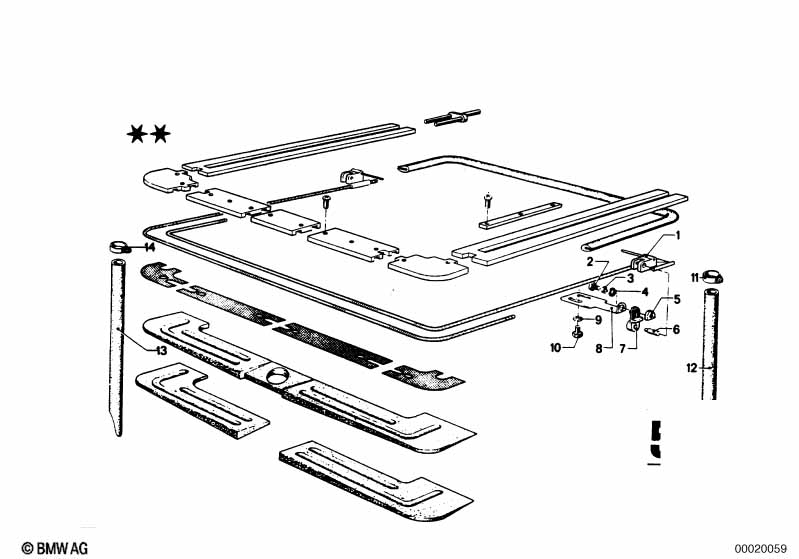

This Soeltak technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Styrning vaenst. | 1 | 54121801433 | $105.61 | Shop at ECS Tuning | |||||
| 01 | Styrning hoeger | 1 | 54121801434 | $105.61 | Shop at ECS Tuning | |||||
| 02 | Skruv | 2 | 54121813693 | Shop at ECS Tuning | ||||||
| 03 | Bussning | 2 | 54121813694 | $1.97 | Shop at ECS Tuning | |||||
| 04 | Låsbleck | 2 | 54129734159 | Shop at ECS Tuning | ||||||
| 05 | Mutter | 2 | 54129734160 | Avslutad | Shop at ECS Tuning | |||||
| 06 | styrstift | 5 M6X14 | 2 | 07119942072 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Vred | 2 | 54121801410 | Avslutad | Shop at ECS Tuning | |||||
| 08 | Vinkel | 2 | 54121801344 | Avslutad | Shop at ECS Tuning | |||||
| 09 | Solfjaederformig skiva | A4,3 | 4 | 07119936610 | Avslutad | Shop at ECS Tuning | ||||
| 10 | Sexkantskruv | M4X6 | 4 | 07119913071 | Avslutad | Shop at ECS Tuning | ||||
| 11 | Slangklaemma | 2 | 54129434149 | $0.45 | Avslutad | Shop at ECS Tuning | ||||
| 12 | Slang | 2 | 54129434146 | Avslutad | Shop at ECS Tuning | |||||
| 13 | Slang | 1520MM | 2 | 51731817660 | Avslutad | Shop at ECS Tuning | ||||
| 14 | Slangklaemma | 2 | 54129434148 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
