Sufflett kabelstam for BMW 2 Series F23 LCI 225d (2019)

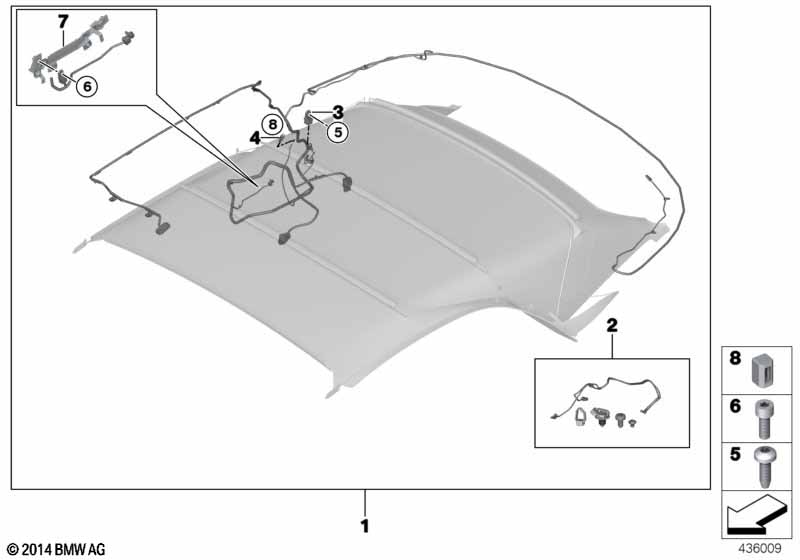

This Sufflett kabelstam technical drawing provides a detailed breakdown of the assembly for the 2 Series F23 LCI 225d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kabel sufflet | 1 | 54347421656 | Shop at ECS Tuning | ||||||
| 02 | Kabelstam kinematikbox vänster | 1 | 54347421829 | Shop at ECS Tuning | ||||||
| 03 | Hallsensor | 4 | 54347190734 | $11.44 | Shop at ECS Tuning | |||||
| 04 | Hallsensor | 1 | 54347190735 | $11.44 | Shop at ECS Tuning | |||||
| 05 | Skruv | M4X10 | 4 | 71607675750 | $1.40 | Shop at ECS Tuning | ||||
| 06 | Linsskruv | L=12MM | 2 | 51419127006 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Adapterplatta | 1 | 54347190732 | $2.85 | Shop at ECS Tuning | |||||
| 08 | Skyddshätta hallsensor | 1 | 54347296012 | Shop at ECS Tuning |
