Detaljen foer stralkastarerengoering for BMW 5 Series E34 520i (1990)

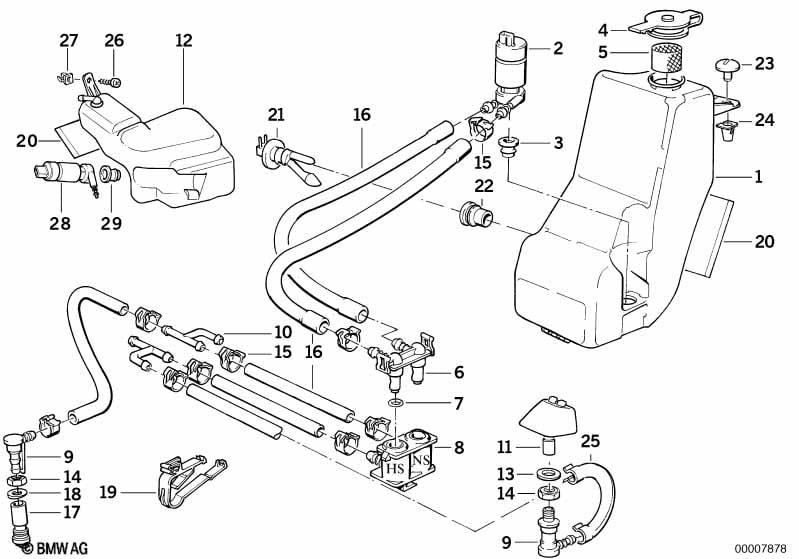

This Detaljen foer stralkastarerengoering technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Behållare | 9,5L | 1 | 61678351262 | Shop at ECS Tuning | |||||
| 02 | Pump strålkastare | 1 | 61671382085 | $80.42 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Packning | 1 | 61671378631 | $0.80 | Shop at ECS Tuning | |||||
| 04 | Kåpa F VINDRUTESPOLARRESERVOAR | 1 | 61661364807 | $5.90 | Shop at ECS Tuning | |||||
| 05 | Sil vattenbehållare | 1 | 61661365848 | $2.60 | Shop at ECS Tuning | |||||
| 06 | Kopplingsstycke | 1 | 61671378630 | $3.27 | Shop at ECS Tuning | |||||
| 07 | Packning | D=7,65MM | 2 | 64508390601 | $1.93 | Shop at ECS Tuning | ||||
| 08 | Foerdelarstycke | 1 | 61671378627 | $2.75 | Shop at ECS Tuning | |||||
| 09 | Ventil | 4 | 61671378629 | $15.17 | Shop at ECS Tuning | |||||
| 10 | Foerdelarstycke | 2 | 61671378625 | $5.33 | Shop at ECS Tuning | |||||
| 11 | Spolmunstycke vaenster | 1 | 61671384961 | $92.40 | Avslutad | Shop at ECS Tuning | ||||
| 11 | Spolmunstycke hoeger | 1 | 61671384962 | $92.40 | Avslutad | Shop at ECS Tuning | ||||
| 13 | Distansbricka | 2 | 61672445464 | Shop at ECS Tuning | ||||||
| 14 | Sexkantmutter | 4 | 61671378633 | $0.37 | Shop at ECS Tuning | |||||
| 15 | Slangklämma | 15.5-18MM | X | 16131179065 | $0.67 | Shop at ECS Tuning | ||||
| 16 | Slangledning | D= 10MM | X | 61671379530 | $5.85 | Shop at ECS Tuning | ||||
| För fordon med Dimstraalkastare |
=Ja |
|||||||||
| 17 | Spridare | 2 | 61671378616 | $23.35 | Shop at ECS Tuning | |||||
| 18 | Distansbricka | 2 | 61671384959 | $0.23 | Avslutad | Shop at ECS Tuning | ||||
| 19 | Slangfaeste | 4 | 61671389041 | $1.62 | Avslutad | Shop at ECS Tuning | ||||
| 20 | Underlägg | 1 | 16111180163 | $1.08 | Shop at ECS Tuning | |||||
| 21 | Niveaukontakt | 1 | 03/1996 | 61311388548 | Shop at ECS Tuning | |||||
| 22 | Gummimuff | 1 | 61311369343 | $1.93 | Shop at ECS Tuning | |||||
| 23 | Skruv KFH | ST4,8X16 | 2 | 07147137416 | $0.20 | Shop at ECS Tuning | ||||
| 24 | Expandermutter | ST 4.8 WEISS | 2 | 63171367868 | $0.60 | Shop at ECS Tuning | ||||
| 25 | Slangfaeste | 1 | 61671389530 | $2.38 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
