Spolpumpe/vaetskebehaallare for BMW 7 Series E23 728 (1979)

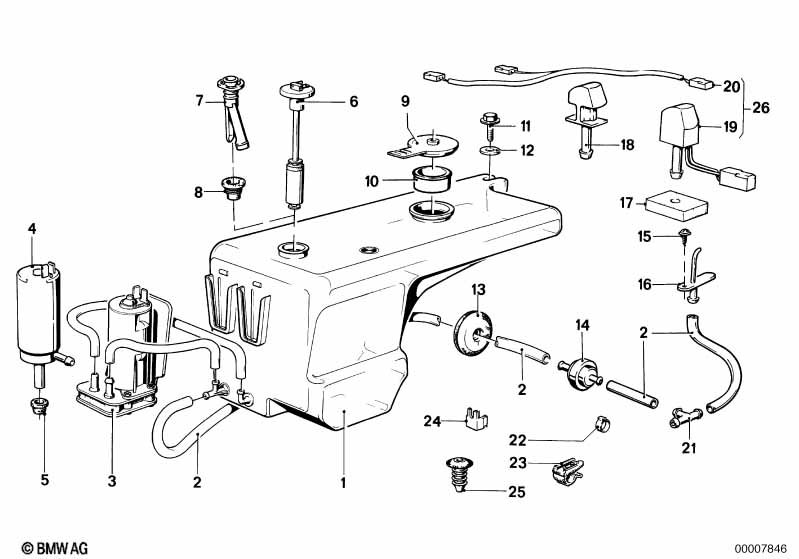

This Spolpumpe/vaetskebehaallare technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Behållare | 3L | 1 | 10/1980 | 61661364077 | Avslutad | Shop at ECS Tuning | |||
| 02 | Slangledning | D= 4,6MM | X | 61661357388 | $5.05 | Shop at ECS Tuning | ||||
| 03 | Rutespolarpump | 1 | 10/1980 | 61661366593 | Avslutad | Shop at ECS Tuning | ||||
| 09 | Kåpa F VINDRUTESPOLARRESERVOAR | 1 | 61661364807 | $5.90 | Shop at ECS Tuning | |||||
| 10 | Sil vattenbehållare | 1 | 61661365848 | $2.60 | Shop at ECS Tuning | |||||
| 11 | Sexkantplaatskruv | ST6,3X38-C | 1 | 07119916886 | $0.96 | Shop at ECS Tuning | ||||
| 12 | Underlagsplaata | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 13 | Bussning | 1 | 61661368612 | Avslutad | Shop at ECS Tuning | |||||
| 14 | Ventil | 1 | 61661380464 | $7.71 | Shop at ECS Tuning | |||||
| 21 | Foerdelarstycke | 1 | 61661355939 | $1.18 | Shop at ECS Tuning | |||||
| 22 | Slangklämma | 8,3-10 | X | 13537795244 | $0.77 | Shop at ECS Tuning | ||||
| 22 | Slangklämma | 8-9.5MM | X | 16131379229 | $0.72 | Shop at ECS Tuning | ||||
| 23 | Hållare | D=10MM | X | 61131362825 | $0.62 | Shop at ECS Tuning | ||||
| 24 | Hållare luftningsledning | X | 16131177583 | $1.08 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
