Kabelhylsa diverse for BMW 5 Series E60 525i (2007)

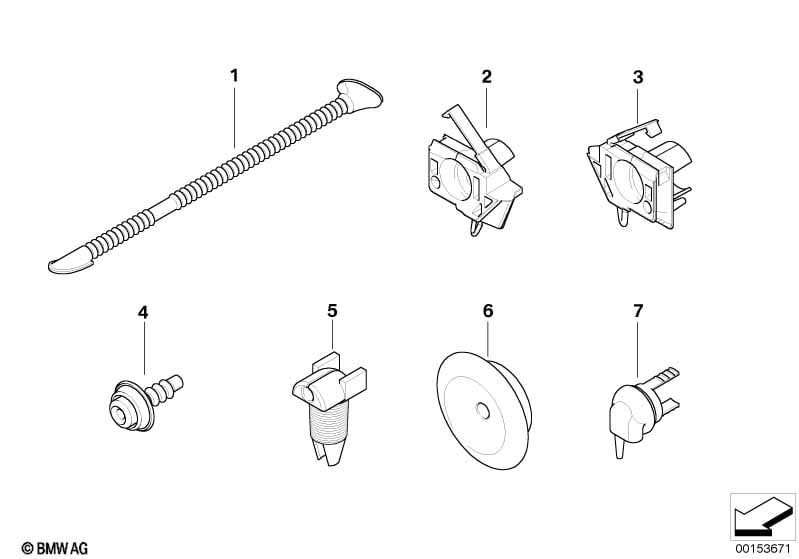

This Kabelhylsa diverse technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Kabelgenomföring fjäderbensvalv höger | 1 | 61136928218 | $4.75 | Avslutad | Shop at ECS Tuning | ||||
| 03 | Kabelgenomföring fjäderbensvalv vänster | 1 | 61136933570 | $4.75 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Bussning | D=45MM | 1 | 61138369503 | $5.90 | Shop at ECS Tuning | ||||
| 05 | Bussning koffertlucka | 1 | 61136930028 | $2.43 | Shop at ECS Tuning | |||||
| 06 | Bussning | 1 | 61138365525 | $4.27 | Shop at ECS Tuning | |||||
| 07 | Kabelhylsa | 1 | 61138367974 | $1.83 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i Kabelhylsa diverse?
- This technical diagram illustrates the Kabelhylsa diverse within the Elsystem group for the 5 Series E60 525i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Kabelgenomföring fjäderbensvalv höger (Part #61136928218).
- Which models use the hardware listed in this Kabelhylsa diverse?
- The hardware and components featured in the Kabelhylsa diverse are specific to the 5 Series E60 525i produced during 2007. These technical specifications ensure that parts like the Kabelgenomföring fjäderbensvalv höger (61136928218) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kabelhylsa diverse assembly?
- Each item in the Kabelhylsa diverse corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the Kabelgenomföring fjäderbensvalv höger by locating its position on the schematic, which then links to the official BMW part number 61136928218 for the Elsystem section.
