Enskilda komponenter strömfördelare fram for BMW 3 Series E90 LCI 318i (2011)

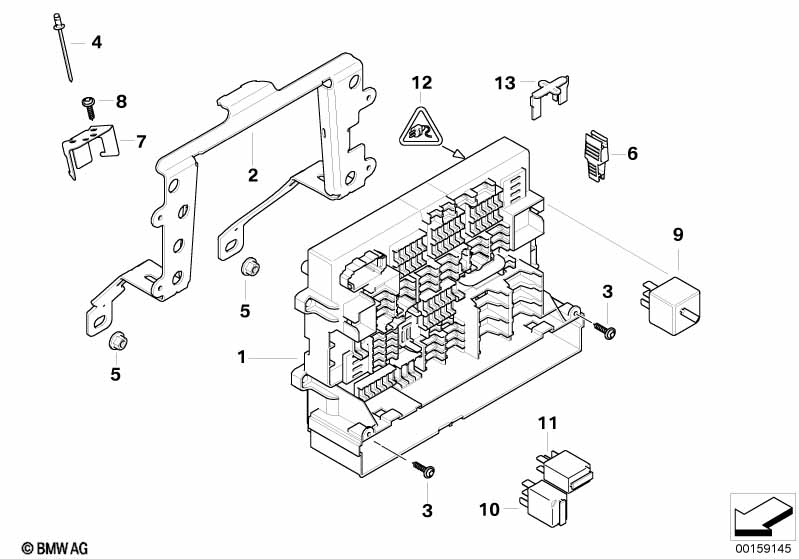

This Enskilda komponenter strömfördelare fram technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | se PuMA-åtgärdsnr 46126132 |
|||||||||
| utan bestyckning | ||||||||||
| 01 | Strömfördelare, fram | 1 | 09/2007 | 61149119445 | $127.83 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Brygga för strömfördelare | 1 | 09/2007 | 61149123980 | $0.62 | Shop at ECS Tuning | ||||
| Montera F14 och F42 från den gamla strömfördelaren |
||||||||||
| 02 | Haallare stroemfoerdelare | 1 | 03/2007 | 61149210701 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Fjaederelement | 1 | 03/2007 | 61149217743 | Shop at ECS Tuning | |||||
| 03 | Linsskruv | 4 | 03/2007 | 07147142048 | $0.16 | Shop at ECS Tuning | ||||
| 04 | Popnit | 4 | 03/2007 | 07146952638 | $0.17 | Shop at ECS Tuning | ||||
| 05 | Sexkantmutter | M6-8-ZNFE SW | 2 | 03/2007 | 07119904022 | $0.09 | Shop at ECS Tuning | |||
| 06 | Klaemma saekring | 1 | 03/2007 | 61146936578 | $1.10 | Shop at ECS Tuning | ||||
| 07 | Fjaederelement | 1 | 12/2009 | 61149217743 | Shop at ECS Tuning | |||||
| 08 | Skruv | NS-TS4X12-ZNFE | 2 | 03/2007 | 07129904962 | $0.16 | Shop at ECS Tuning | |||
| Reläv klämma 30G | ||||||||||
| 09 | Relä slutare svart | LVA | 1 | 03/2007 | 61366901469 | $13.96 | +stomme | Shop at ECS Tuning | ||
| Relä för torkar | ||||||||||
| 10 | Relä växlare grönt | 1 | 03/2007 | 61366980177 | $23.75 | Shop at ECS Tuning | ||||
| Relä för bakrutetorkare | ||||||||||
| 11 | Relä växlare grönt | 1 | 03/2007 | 61366980177 | $23.75 | Shop at ECS Tuning | ||||
| X11001, X11002, X11003,X11007, X11008 | ||||||||||
| 12 | Stickkontaktkaapa | 10+ 5 POL. | 5 | 03/2007 | 61139225063 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Dubbelbladfjäderkontakt med kabel | 2,5 MM² | X | 03/2007 | 61130007438 | $2.75 | Shop at ECS Tuning | |||
| -- | Dubbelbladfjäder kontakt | 0,5-1,0 MM² | X | 03/2007 | 61131378906 | $1.24 | Shop at ECS Tuning | |||
| X11011 | ||||||||||
| 12 | Universellt hylskontakthus MAK8 | 6 POL. | 1 | 03/2007 | 61146937066 | $2.32 | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | Flatkontakt MAK8 | 2,5-4MM² | X | 03/2007 | 61136920092 | $1.90 | Shop at ECS Tuning | |||
| X11004, X11005, X11006, X11009 | ||||||||||
| 12 | Universellt hylskontakthus DFK40 | 6 POL. | 4 | 03/2007 | 61146938604 | $1.35 | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | Dubbelbladfjäder kontakt | 0,5-1,0 MM²(AG) | X | 03/2007 | 61138377730 | $0.63 | Shop at ECS Tuning | |||
| -- | Dubbelbladfjäder kontakt | 1,5-2,5 MM²(AG) | X | 03/2007 | 61138377732 | $0.63 | Shop at ECS Tuning | |||
| -- | Dubbelbladfjäder kontakt | 4,0-6,0 MM²(AG) | X | 03/2007 | 61138377734 | Shop at ECS Tuning | ||||
| X11010 | ||||||||||
| 12 | Universellt hylskontakthus hybrid | 6+4 POL. | 1 | 03/2007 | 61136925614 | $4.23 | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt MQS ELA | 0,35-0,5 MM² | 1 | 03/2007 | 61136901726 | $0.43 | Shop at ECS Tuning | |||
| -- | Hylskontakt MQS ELA | 0,75-1,5 MM² | 1 | 03/2007 | 61136901728 | $0.35 | Shop at ECS Tuning | |||
| -- | Kontaktstift ELO-Power 5,2x0,63 | 1,5-2,5 MM² SN | 1 | 03/2007 | 61138364842 | $0.50 | Shop at ECS Tuning | |||
| -- | Kontaktstift ELO-Power 5,2x0,63 | 2,4- 4,0 MM? | 1 | 03/2007 | 61138364844 | $0.50 | Shop at ECS Tuning | |||
| 13 | Brygga för strömfördelare | 2 | 03/2007 | 61149123980 | $0.62 | Shop at ECS Tuning | ||||
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
