Diverse kabel med stickkontakt for BMW 5 Series E39 525i (2003)

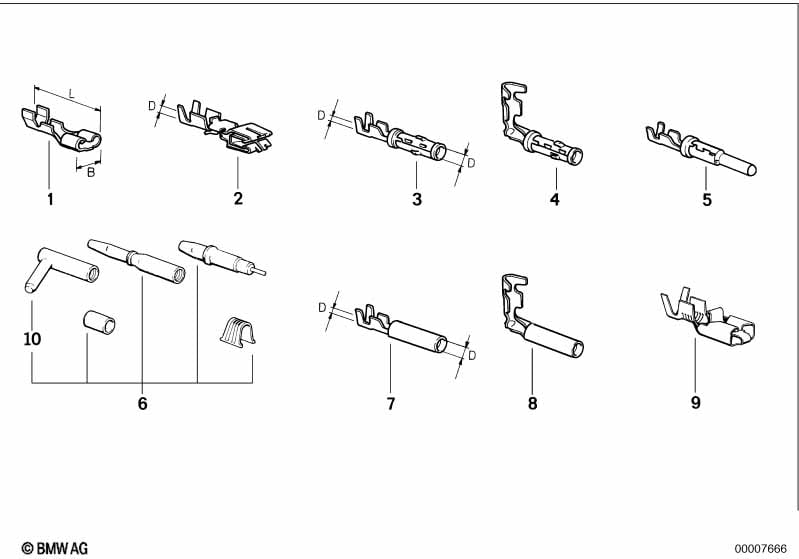

This Diverse kabel med stickkontakt technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Flatkontakthylsa | B=6,5/L=19,5 | X | 61131376460 | $0.48 | Shop at ECS Tuning | ||||
| 01 | Flatkontakthylsa | B=7,5/L=19,2MM | X | 61138061769 | $0.48 | Avslutad | Shop at ECS Tuning | |||
| 02 | Dubbelbladfjäder kontakt | 0,5-1,0MM²(SN) | X | 61131370691 | $0.62 | Shop at ECS Tuning | ||||
| 02 | Dubbelbladfjäder kontakt | 1,5-2,5 MM²(AG) | X | 61131370692 | $0.68 | Shop at ECS Tuning | ||||
| 02 | Dubbelbladfjäder kontakt | 1,5-2,5 MM²(AG) | X | 61138377732 | $0.63 | Shop at ECS Tuning | ||||
| 02 | Dubbelbladfjäder kontakt | 4,0-6,0 MM²(AG) | X | 61138377734 | Shop at ECS Tuning | |||||
| 03 | Rund instickshylsa 2.5 | 0,5-1,0MM² | X | 61131376202 | $0.98 | Shop at ECS Tuning | ||||
| 03 | Rund instickshylsa 2.5 | 1,0-2,5MM² | X | 61131376204 | $0.98 | Shop at ECS Tuning | ||||
| 03 | Rund instickshylsa 2.5 | 2,5-4,0MM² | X | 61131376206 | $0.98 | Shop at ECS Tuning | ||||
| 04 | Rund instickshylsa 2.5 med kabel | 0,5-1,0 MM² | X | 61130007470 | $2.27 | Shop at ECS Tuning | ||||
| 04 | Rund instickshylsa 2.5 | 1,5-2,5MM² | X | 61131376224 | $0.50 | Shop at ECS Tuning | ||||
| 05 | Rund stickkontakt 2.5 | 2,5-4,0MM² | X | 12/2003 | 61131376195 | $1.05 | Avslutad | Shop at ECS Tuning | ||
| 05 | Rund stickkontakt 2.5 | 2,5-4,0MM² AG | X | 61139344421 | Shop at ECS Tuning | |||||
| 05 | Rundstickkontakt | D=1.0/0.4-0.75 | X | 61131373819 | $1.15 | Shop at ECS Tuning | ||||
| 05 | Rund stickkontakt 2.5 | 0,5-1,0MM² | X | 61131376191 | $0.55 | Shop at ECS Tuning | ||||
| 05 | Rund stickkontakt 2.5 | 1,0-2,5MM² | X | 61131376193 | $1.12 | Shop at ECS Tuning | ||||
| 06 | Reparationssats vattentaat stickkontakt | X | 61131382248 | $66.05 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Rund kontakthylsa | D=2.0/0.4-0.75 | X | 61131373820 | $1.15 | Shop at ECS Tuning | ||||
| 07 | Rund instickshylsa 2.5 | 0,5-1,0MM² | X | 61131376202 | $0.98 | Shop at ECS Tuning | ||||
| 08 | Rund instickshylsa 2.5, vattentät | 0,5-1,0 MM² | X | 61130007445 | $5.58 | Shop at ECS Tuning | ||||
| 08 | Rund instickshylsa 2.5, vattentät | 1,0-2,5 MM² | X | 61130007446 | $5.80 | Shop at ECS Tuning | ||||
| 09 | Flatkontakthylsa | 1-2 MM² | X | 61131382194 | $0.50 | Avslutad | Shop at ECS Tuning | |||
| 10 | Rund instickshylsa 2.5, vattentät | 1,0-2,5 MM² | X | 61130007446 | $5.80 | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
