Rep.kabel, airbag for BMW 5 Series E39 525i (2003)

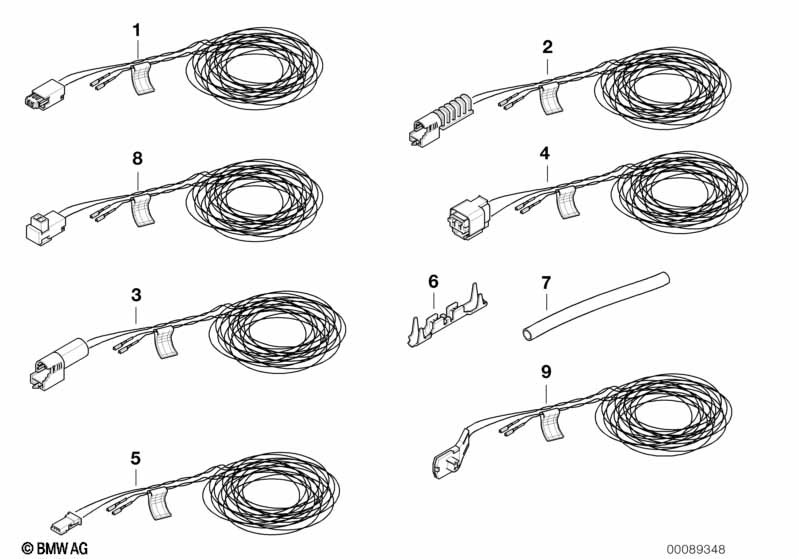

This Rep.kabel, airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| passar endast till ITS-huvudairbag | ||||||||||
| 01 | Rep.kabel airbag/styrdon airbag | 2 | 61129118089 | $24.85 | Shop at ECS Tuning | |||||
| 02 | Rep.kabel förarairbag/styrdon | 1 | 61129118082 | $25.88 | Shop at ECS Tuning | |||||
| passar endast till säkerhetsbatteriklämma |
||||||||||
| 03 | Rep.kabel airbag/styrdon airbag | 6900MM | 1 | 12/2015 | 61129118085 | $28.15 | Avslutad | Shop at ECS Tuning | ||
| 03 | Rep.kabel airbag/styrdon airbag | 6900MM | 1 | 61126824837 | Shop at ECS Tuning | |||||
| För fordon med Airbag passagerar |
=Ja |
|||||||||
| 03 | Rep.kabel airbag/styrdon airbag | 6900MM | 1 | 61126824837 | Shop at ECS Tuning | |||||
| För fordon med ITS - Huvudairbag |
=Ja |
|||||||||
| 03 | Rep.kabel airbag/styrdon airbag | 6900MM | 1 | 61126824837 | Shop at ECS Tuning | |||||
| 06 | Kabelförbindning | 0.2-0.5 MM² | X | 61138353746 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Krympslang | 6X45MM | X | 61135A4F528 | Shop at ECS Tuning | |||||
| passar endast till ITS-huvudairbag | ||||||||||
| 08 | Rep.-kabel ITS-huvudkrockkudde/styrenhet | 2 | 09/2000 | 61129118135 | $24.85 | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
