Kontaktanslutning för A4*3B-> A437*1B for BMW 7 Series G11 LCI 730i (2020)

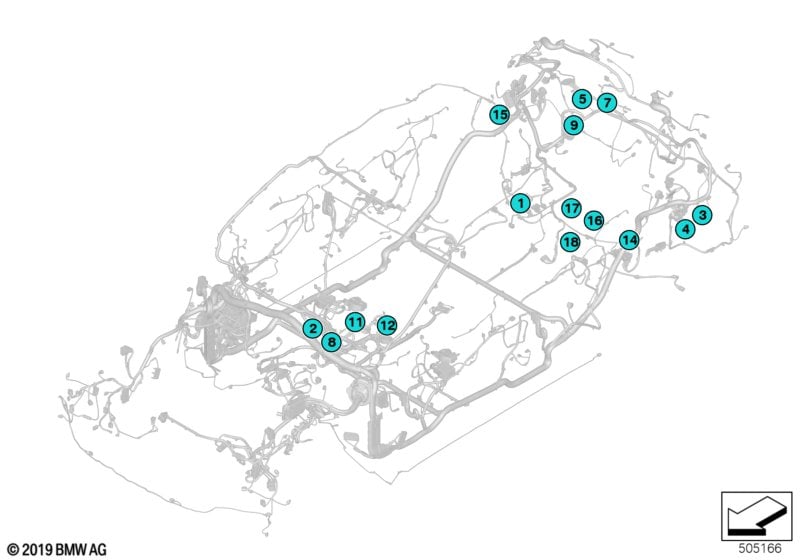

This Kontaktanslutning för A4*3B-> A437*1B technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OBS! De angivna "endast i kombination med"-delarna måste inte beställas ¿ de fungerar endast som information och kan beställas vid behov. Alla nedanstående kontakt- /honkontakthus fungerar som monteringsöversikt för grovbeteckningen. Exakt monteringsplats för respektive fordon framgår av systemet "AIR". |
|||||||||
| A4*3B - stolmodul passagerarsida bak | ||||||||||
| 01 | Hylskontakthus okodat | 8 POL. | 1 | 61136905168 | $1.65 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Buchsenkontakt ELO-Power mit Kabel | 1,5-2,5 MM² SN | 2 | 61130056947 | Shop at ECS Tuning | |||||
| -- | Hylskontakt MQS med kabel | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| -- | Hylskontakt MQS med kabel | 0,2-0,35 MM² AG | 3 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Skarvförbindning med krympslang | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Skarvförbindning med krympslang | 0,17-0,5MM² | 3 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Skarvförbindning med krympslang | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| A402*1B - Headunit High 3 | ||||||||||
| 02 | Stickkontaktkaapa | 16 POL./Z-CODE | 1 | 61136901662 | $2.55 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt MQS med kabel | 0,2-0,35 MM² AG | 7 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Skarvförbindning med krympslang | 0,17-0,5MM² | 87 | 61138727251 | Shop at ECS Tuning | |||||
| A402*2B - Headunit High 3 | ||||||||||
| 02 | Hylskontakthus okodat | 20 POL. KOD Z | 1 | 61138709112 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Honkontakt NanoMQS med kabel | 0,22-0,35MM² AG | 8 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Skarvförbindning med krympslang | 0,17-0,5MM² | 8 | 61138727251 | Shop at ECS Tuning | |||||
