Insticksanslutning från B55*1B->B652*1B for BMW 7 Series G11 LCI 730i (2020)

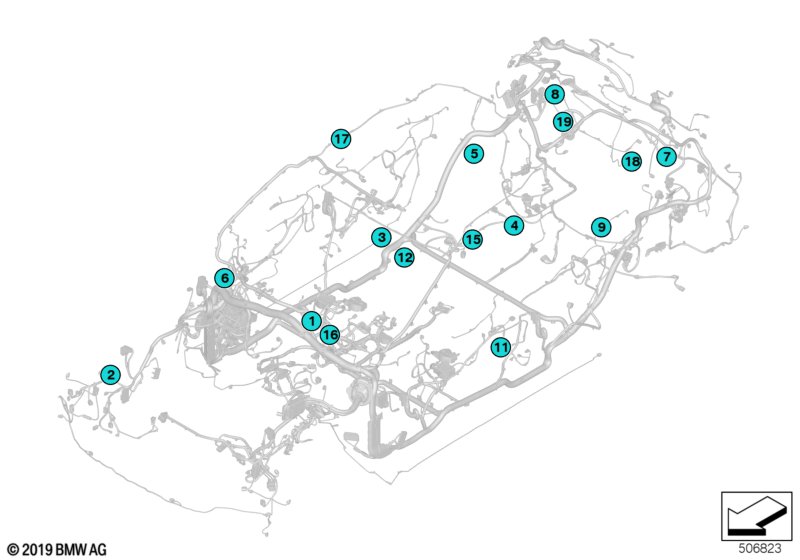

This Insticksanslutning från B55*1B->B652*1B technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | OBS! De angivna "endast i kombination med"-delarna måste inte beställas ¿ de fungerar endast som information och kan beställas vid behov. Alla nedanstående kontakt-/ honkontakthus fungerar som monteringsöversikt för grovbeteckningen. Exakt monteringsplats för respektive fordon framgår av systemet "AIR". |
|||||||||
| B55*2B - diskanthögtalare fram mitten | ||||||||||
| 01 | Universalkåpa f stift utan kod | 2 POL. | 1 | 61138373583 | $2.72 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Stiftkontakt MQS med kabel | 0,5-0,75 QMM AG | 2 | 61130070562 | Shop at ECS Tuning | |||||
| -- | Skarvförbindning med krympslang | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| B56*1B - Yttertemperatursensor | ||||||||||
| 02 | Rep.-sats hylskontakthus | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| B57*1B - Airbagsensor B-stolpe höger | ||||||||||
| 03 | Universal stickkontaktkåpa utan kod | 2 POL. | 1 | 12527543313 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Skarvförbindning med krympslang | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Honkontakt MCON 1,2 med kabel | 0,25-0,35MM² AG | 2 | 12520056954 | Shop at ECS Tuning | |||||
| B58*2B - baksätets ventilationsgaller | ||||||||||
| 04 | Universal stickkontaktkåpa utan kod | 10 POL. | 1 | 61136909008 | $1.82 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt MQS med kabel | 0,2-0,35 MM² AG | 6 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Skarvförbindning med krympslang | 0,17-0,5MM² | 6 | 61138727251 | Shop at ECS Tuning | |||||
| B6*1B - ventilationsgaller fram höger | ||||||||||
| 06 | Rep.-sats hylskontakthus | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| B60*3B - mellanregisterhögtalare bak vänster |
||||||||||
| 07 | Rep.-sats hylskontakthus | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| B61*3B - mellanregisterhögtalare bak höger |
||||||||||
| 08 | Rep.-sats hylskontakthus | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| B62*1B - diskanthögtalare bak vänster | ||||||||||
| 09 | Universalkåpa f stift utan kod | 2 POL. | 1 | 61138373583 | $2.72 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Stiftkontakt MQS med kabel | 0,5-0,75 QMM AG | 2 | 61130070562 | Shop at ECS Tuning | |||||
| -- | Skarvförbindning med krympslang | 0,5-1,5MM² | 2 | 61138727252 | Shop at ECS Tuning | |||||
| B65*1B - Mellanregisterhögtalare fram mitten |
||||||||||
| 16 | Rep.-sats hylskontakthus | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
