Detaljen foer saekringslaada for BMW 3 Series E46 320Cd (2004)

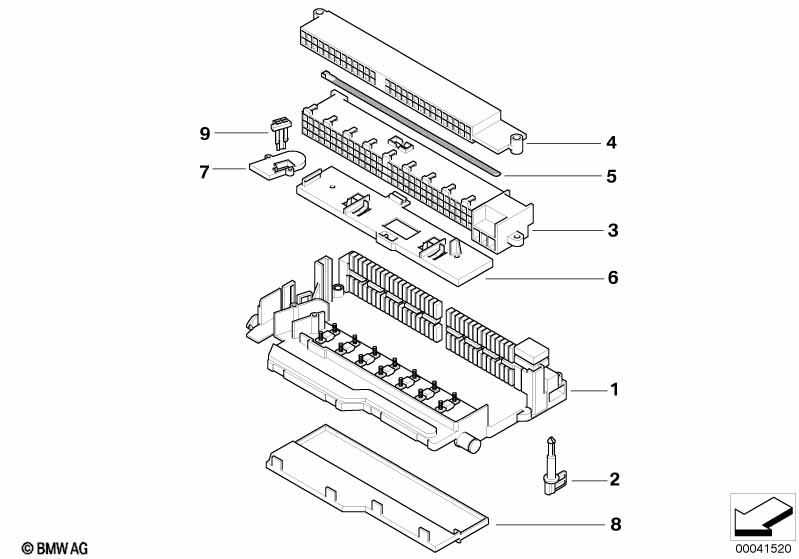

This Detaljen foer saekringslaada technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Säkringslåda | 1 | 61138364530 | $102.13 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Låsanordning | 2 | 61138377755 | $4.07 | Shop at ECS Tuning | |||||
| 03 | Säkringsfäste ovan | 1 | 61138364532 | $32.12 | Shop at ECS Tuning | |||||
| 04 | Säkringsfäste mitt | 1 | 61138364533 | $11.00 | Shop at ECS Tuning | |||||
| 05 | Slid vit | 2 | 61138364536 | $0.92 | Avslutad | Shop at ECS Tuning | ||||
| 05 | Slid blå | 2 | 61138364537 | $0.93 | Avslutad | Shop at ECS Tuning | ||||
| 06 | Kåpa säkringsboxen | 1 | 61138364540 | $5.93 | Shop at ECS Tuning | |||||
| 07 | Kåpa säkringsboxen | 1 | 61138364541 | $1.08 | Shop at ECS Tuning | |||||
| 08 | Kåpa säkringsboxen | 1 | 61138364542 | $3.60 | Shop at ECS Tuning | |||||
| 09 | Blyplombering f Service (roed) | 1 | 61138378461 | $0.55 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320Cd Detaljen foer saekringslaada?
- This technical diagram illustrates the Detaljen foer saekringslaada within the Elsystem group for the 3 Series E46 320Cd produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Säkringslåda (Part #61138364530).
- Which models use the hardware listed in this Detaljen foer saekringslaada?
- The hardware and components featured in the Detaljen foer saekringslaada are specific to the 3 Series E46 320Cd produced during 2004. These technical specifications ensure that parts like the Säkringslåda (61138364530) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Detaljen foer saekringslaada assembly?
- Each item in the Detaljen foer saekringslaada corresponds to the numbered list below the illustration. For the 3 Series E46 320Cd, you can identify the Säkringslåda by locating its position on the schematic, which then links to the official BMW part number 61138364530 for the Elsystem section.
