Baklykta for BMW 3 Series E30 318i (1993)

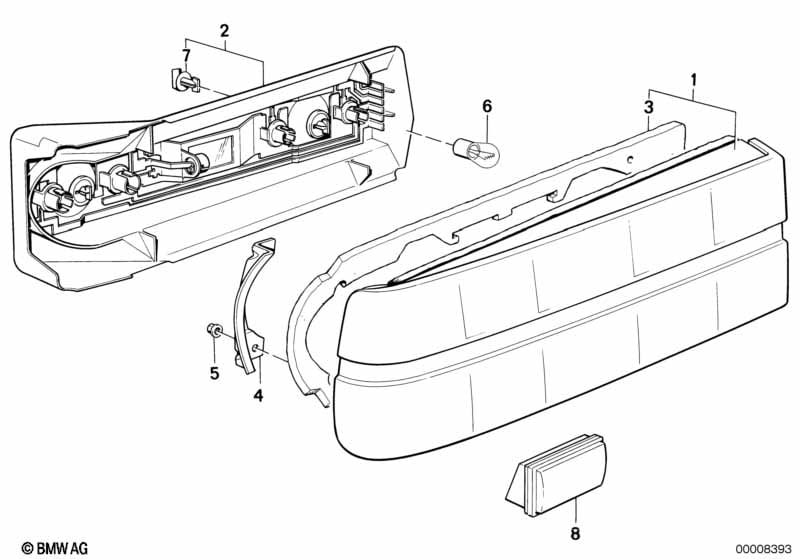

This Baklykta technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Baklykta med dimbakljus vaenster | 1 | 10/1990 | 63211386941 | $171.41 | Shop at ECS Tuning | ||||
| 01 | Baklykta med dimbakljus hoeger | 1 | 10/1990 | 63211386942 | $171.41 | Shop at ECS Tuning | ||||
| 01 | Bakbelysning hoeger | 1 | 10/1990 | 63211386944 | $171.41 | Shop at ECS Tuning | ||||
| 02 | Skydd | 1 | 10/1990 | 63211386096 | $82.87 | Avslutad | Shop at ECS Tuning | |||
| För fordon med Dimljus |
=Ja |
|||||||||
| 02 | Avtäckning vänster | 1 | 10/1990 | 63211386091 | $35.47 | Avslutad | Shop at ECS Tuning | |||
| 02 | Avtaeckning hoeger | 1 | 10/1990 | 63211386092 | $35.47 | Avslutad | Shop at ECS Tuning | |||
| 03 | Packning | 2 | 10/1990 | 63211380419 | $8.25 | Shop at ECS Tuning | ||||
| 04 | Haallare vaenster | 1 | 09/1990 | 63211385377 | $2.63 | Shop at ECS Tuning | ||||
| 04 | Hållare hoeger | 1 | 09/1990 | 63211385378 | $2.63 | Shop at ECS Tuning | ||||
| 05 | Sexkantmutter med plaata | M5 | X | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 06 | Glödlampa | 12V 10W | X | 07119905337 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Glödlampa | P21W/12V/21W | X | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Glödlampa Longlife | P21W/12V/21W | X | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 07 | Vridknopp | 4 | 09/1990 | 63211386152 | $2.05 | Avslutad | Shop at ECS Tuning | |||
Notering
- Avslutad = delen tillverkas inte längre.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Baklykta?
- This technical diagram illustrates the Baklykta within the Belysningssystem group for the 3 Series E30 318i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Baklykta med dimbakljus vaenster (Part #63211386941).
- Which models use the hardware listed in this Baklykta?
- The hardware and components featured in the Baklykta are specific to the 3 Series E30 318i produced during 1993. These technical specifications ensure that parts like the Baklykta med dimbakljus vaenster (63211386941) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Baklykta assembly?
- Each item in the Baklykta corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Baklykta med dimbakljus vaenster by locating its position on the schematic, which then links to the official BMW part number 63211386941 for the Belysningssystem section.
