Diverse lyktor for BMW 3 Series E30 318i (1993)

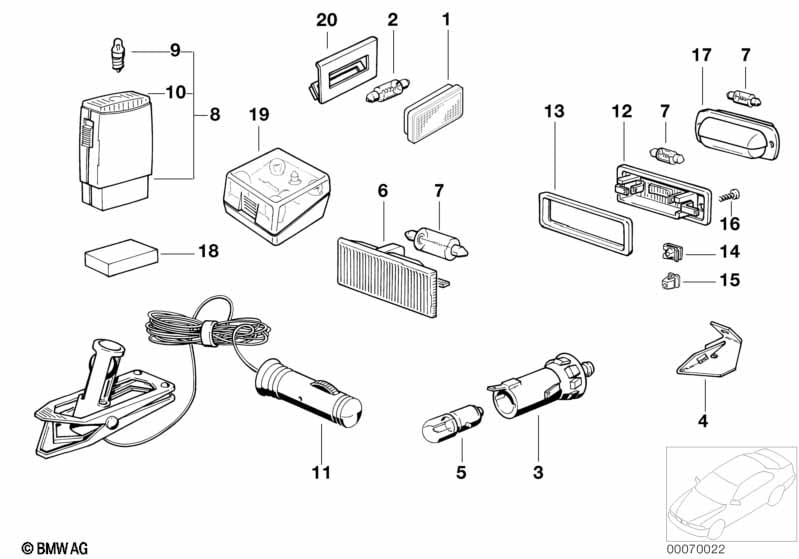

This Diverse lyktor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Innerbelysning | 1 | 63311376046 | $14.75 | +stomme | Shop at ECS Tuning | ||||
| 02 | Glödlampa | 5W | 1 | 63311374798 | $16.90 | +stomme | Shop at ECS Tuning | |||
| 03 | Kontakt handsfacklykta | 1 | 61311386315 | Avslutad | Shop at ECS Tuning | |||||
| 05 | Glödlampa | 12V 5W | X | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 09 | Glödlampa | 0,18A | 1 | 63171360377 | $5.14 | Avslutad | Shop at ECS Tuning | |||
| 10 | Lins | 1 | 82119413148 | $2.54 | Avslutad | Shop at ECS Tuning | ||||
| 13 | Packning | SIDLER | 2 | 63261354034 | $4.24 | Shop at ECS Tuning | ||||
| 14 | Plaatmutter | ST3,9-4 | 4 | 07129901640 | Avslutad | Shop at ECS Tuning | ||||
| 15 | Expandermutter | 4 | 63261378067 | $0.25 | Shop at ECS Tuning | |||||
| 16 | Skruv KFH | ST3,9X13 | 4 | 07119907720 | $2.09 | Shop at ECS Tuning | ||||
| 18 | Avtaeckning f handlampa | 1 | 61131360702 | $0.43 | Shop at ECS Tuning | |||||
| 19 | Reservlampsbehaallare | 1 | 63212318127 | Shop at ECS Tuning |
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
- Avslutad = delen tillverkas inte längre.
