Tredje bromsbaklykta for BMW 3 Series E46 318i (2001)

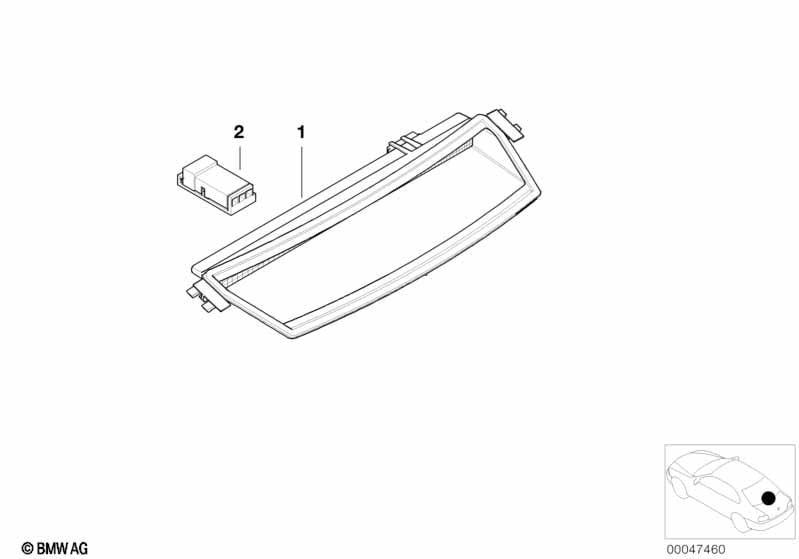

This Tredje bromsbaklykta technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tredje bromsbaklykta | SCHWARZ | 1 | 63257219086 | $99.25 | Shop at ECS Tuning | ||||
| 02 | Universalkåpa f stift utan kod | 2 POL. | 1 | 61138373583 | $2.72 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Stiftkontakt MQS med kabel | 0,2- 0,5QMM | 1 | 61130005198 | $1.82 | Shop at ECS Tuning | ||||
| -- | Stiftkontakt MQS med kabel | 0,5-0,75 QMM AG | 1 | 61130070562 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Tredje bromsbaklykta?
- This technical diagram illustrates the Tredje bromsbaklykta within the Belysningssystem group for the 3 Series E46 318i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Tredje bromsbaklykta (Part #63257219086).
- Which models use the hardware listed in this Tredje bromsbaklykta?
- The hardware and components featured in the Tredje bromsbaklykta are specific to the 3 Series E46 318i produced during 2001. These technical specifications ensure that parts like the Tredje bromsbaklykta (63257219086) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Tredje bromsbaklykta assembly?
- Each item in the Tredje bromsbaklykta corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Tredje bromsbaklykta by locating its position on the schematic, which then links to the official BMW part number 63257219086 for the Belysningssystem section.
