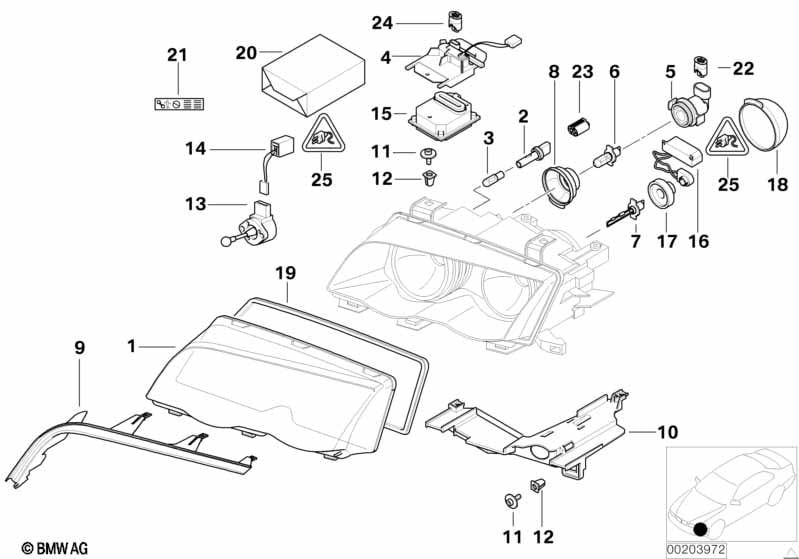

Enskilda komponenter strålkastare xenon for BMW 3 Series E46 318i (2001)
This Enskilda komponenter strålkastare xenon technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Täckglas vänster | AL | 1 | 09/2001 | 63128380189 | $87.27 | Avslutad | Shop at ECS Tuning | ||
| 01 | Täckglas höger | AL | 1 | 09/2001 | 63128380190 | $87.27 | Avslutad | Shop at ECS Tuning | ||
| 02 | Lamphållare parkeringsljus | 2 | 63128380205 | $6.85 | Shop at ECS Tuning | |||||
| 03 | Glödlampa Longlife | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 04 | Hållare, styrdon, Xenon-ljus | 2 | 09/2001 | 63126901481 | $111.35 | Shop at ECS Tuning | ||||
| 05 | Lamphållare helljus | 2 | 63128380207 | $11.87 | Shop at ECS Tuning | |||||
| 06 | Glödlampa | H7/55W | 2 | 63217160780 | $18.86 | Shop at ECS Tuning | ||||
| 06 | Glödlampa Longlife | 12V 55W H7 | 2 | 63217160781 | $20.90 | Shop at ECS Tuning | ||||
| 06 | Set glödlampor H7 BMW Design | 12V 55W +30% | 2 | 63217170652 | $85.62 | Avslutad | Shop at ECS Tuning | |||
| 07 | Glödlampa xenon-ljus | PHILIPS D2-S | 2 | 07119904790 | $129.62 | Shop at ECS Tuning | ||||
| passar ej ZKW | ||||||||||
| 07 | Glödlampa xenon-ljus | D2-S 35W | 2 | 63217160806 | $212.43 | Shop at ECS Tuning | ||||
| 08 | Avtaeckning helljus | 2 | 63128384492 | $12.70 | Shop at ECS Tuning | |||||
| 09 | List uträndig ingång vänster | 1 | 09/2001 | 63128384487 | $20.42 | Shop at ECS Tuning | ||||
| 09 | List uträndig ingång höger | 1 | 09/2001 | 63128384488 | $20.42 | Shop at ECS Tuning | ||||
| 10 | Haallare stralkastar vaenster | 1 | 63128380187 | $51.13 | Shop at ECS Tuning | |||||
| 10 | Haallare stralkastar hoeger | 1 | 63128380188 | $51.13 | Shop at ECS Tuning | |||||
| 11 | Skruv | 8 | 63126975083 | $0.43 | Shop at ECS Tuning | |||||
| 12 | Expandermutter | BLACK | 4 | 63128374670 | $0.30 | Shop at ECS Tuning | ||||
| 12 | Expandermutter | GRAU | 4 | 63128374671 | $0.23 | Shop at ECS Tuning | ||||
| 13 | Hoejdjustering straalkast.instaell. | 2 | 67168372381 | $76.77 | Shop at ECS Tuning | |||||
| 14 | Kabelsats reglage av straldistans | 2 | 61138373573 | $6.40 | Shop at ECS Tuning | |||||
| 15 | Styrdon xenon-ljus | 2 | 09/2001 | 61358376273 | $463.33 | Shop at ECS Tuning | ||||
| 16 | Tändningselement xenon-ljus | 2 | 09/2001 | 63126904548 | $471.78 | Shop at ECS Tuning | ||||
| 17 | Låsring glödlampa Xenon-ljus | 2 | 63126905323 | $11.23 | Shop at ECS Tuning | |||||
| 18 | Avtaeckning halvljus | 2 | 09/2001 | 63126901480 | $12.70 | Shop at ECS Tuning | ||||
| 19 | Packning straalkastare | 2 | 63128380210 | $23.55 | Shop at ECS Tuning | |||||
| 20 | Reparationssats straalkastare | 1 | 63126904664 | $9.53 | Shop at ECS Tuning | |||||
| 21 | Etikett xenon-ljus | 2 | 71237248266 | Shop at ECS Tuning | ||||||
| 22 | Kåpa FOER STICKKONTAKT SVART | 2 POL. | 2 | 61138364494 | $1.82 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Flatkontakthylsa | 1-2 MM² | 2 | 61131382194 | $0.50 | Avslutad | Shop at ECS Tuning | |||
| -- | Tätningsbussning | 2 | 61131382195 | $0.48 | Shop at ECS Tuning | |||||
| 23 | Universal stickkontaktkåpa utan kod | 2 POL. | 2 | 61138373332 | $2.70 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt ELO-Power ELA med kabel | 0,2- 0,5 MM² SN | 2 | 61130070581 | Shop at ECS Tuning | |||||
| 24 | Stickkontaktkaapa gra | 2 POL. | 2 | 61138364498 | $2.33 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Bladfjäderkontakt JPT ELA med kabel | 0,5-1,0 MM² AG | 4 | 61130070584 | Shop at ECS Tuning | |||||
| 25 | Universal stickkontaktkåpa utan kod | 4 POL. | 2 | 61138365356 | $3.10 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt MQS ELA med kabel | 0,5-0,75 MM² AG | X | 61130056384 | Shop at ECS Tuning | |||||
| -- | Hylskontakt MQS ELA med kabel | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
