Strålkastare for BMW 3 Series E90 LCI M3

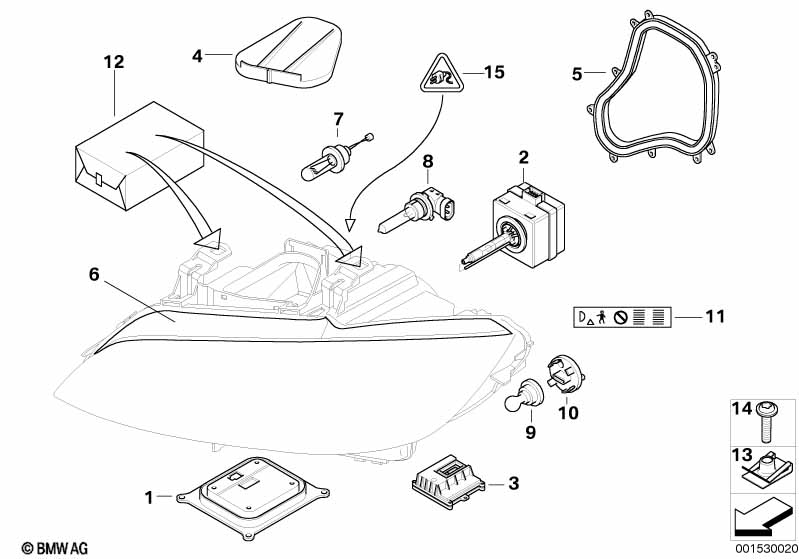

This Strålkastare technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI M3. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Styrdon xenon-ljus | 2 | 63117182520 | $449.90 | Shop at ECS Tuning | |||||
| 02 | Glödlampa xenon-ljus m tändningselement | D1 12V 35W | 2 | 63217217509 | $212.43 | Shop at ECS Tuning | ||||
| För fordon med Adaptivt kurvljus |
S524A=Ja |
|||||||||
| 03 | Styrenhet kurvljus med lock | 2 | 63117182396 | $143.22 | Shop at ECS Tuning | |||||
| 04 | Skydd | LINKS | 1 | 63117182393 | $10.18 | Shop at ECS Tuning | ||||
| 04 | Skydd | RECHTS | 1 | 63117182394 | $10.18 | Shop at ECS Tuning | ||||
| 05 | Kåpa HALVLJUS | 2 | 63117182395 | $15.38 | Shop at ECS Tuning | |||||
| 06 | Packning strålkastare vänster | 1 | 63117174517 | $8.63 | Shop at ECS Tuning | |||||
| 06 | Packning strålkastare höger | 1 | 63117174518 | $8.63 | Shop at ECS Tuning | |||||
| För fordon med Adaptivt kurvljus |
S524A=Ja |
|||||||||
| 07 | Glödlampa | 12V 55W H3 | 2 | 63217160779 | $21.84 | Shop at ECS Tuning | ||||
| 08 | Glödlampa | H8 12V 35W | 2 | 07119906503 | Shop at ECS Tuning | |||||
| 09 | Glödlampa silver | PSY 12V 24W SV | 2 | 63217161306 | $28.74 | Shop at ECS Tuning | ||||
| 10 | Skydd | 2 | 63117182521 | $8.55 | Shop at ECS Tuning | |||||
| 11 | Etikett xenon-ljus | 2 | 71237248266 | Shop at ECS Tuning | ||||||
| 12 | Reparationssats straalkastare | 2 | 63117182519 | $9.73 | Shop at ECS Tuning | |||||
| 13 | Torx skruv | ISA M6X18 SW | 8 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 14 | Clipmutter | M6 | 8 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
