Luftutlopp for BMW 2500-3.3Li 2800 (1971)

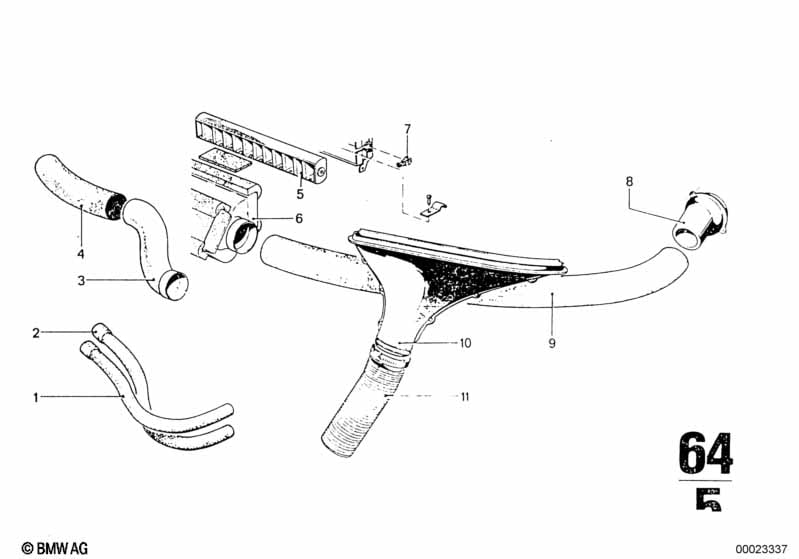

This Luftutlopp technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Slang retur | 1 | 08/1968 | 02/1977 | 64211361180 | $27.20 | Shop at ECS Tuning | |||
| 02 | Vattenslang insug 1 | 1 | 07/1969 | 02/1977 | 64211354604 | $29.02 | Shop at ECS Tuning | |||
| 03 | Vinkel | 1 | 64211351193 | $12.72 | Avslutad | Shop at ECS Tuning | ||||
| 04 | Slang | 1 | 64211355173 | Avslutad | Shop at ECS Tuning | |||||
| 05 | Friskluftgrill | 1 | 64221350426 | Avslutad | Shop at ECS Tuning | |||||
| 06 | Mellanstycke | 1 | 64221350660 | Avslutad | Shop at ECS Tuning | |||||
| 07 | Lagerbock | 2 | 64221350427 | Avslutad | Shop at ECS Tuning | |||||
| 08 | Munstycke foer friskluft | 2 | 08/1968 | 02/1977 | 64221359522 | Avslutad | Shop at ECS Tuning | |||
| 09 | Slang | 1 | 07/1969 | 02/1977 | 64211355175 | Avslutad | Shop at ECS Tuning | |||
| För fordon med Landutförande sverige |
=Ja |
|||||||||
| 09 | Varmluftslang blaegen paa sidan | 1 | 08/1968 | 02/1977 | 64211358544 | Avslutad | Shop at ECS Tuning | |||
| 10 | Defrostermunstycke hoeger | 1 | 07/1969 | 02/1977 | 64221352374 | Avslutad | Shop at ECS Tuning | |||
| 11 | Varmluftslang | 2 | 64211355169 | $2.62 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
