Kimatanläggning for BMW 2500-3.3Li 2800 (1971)

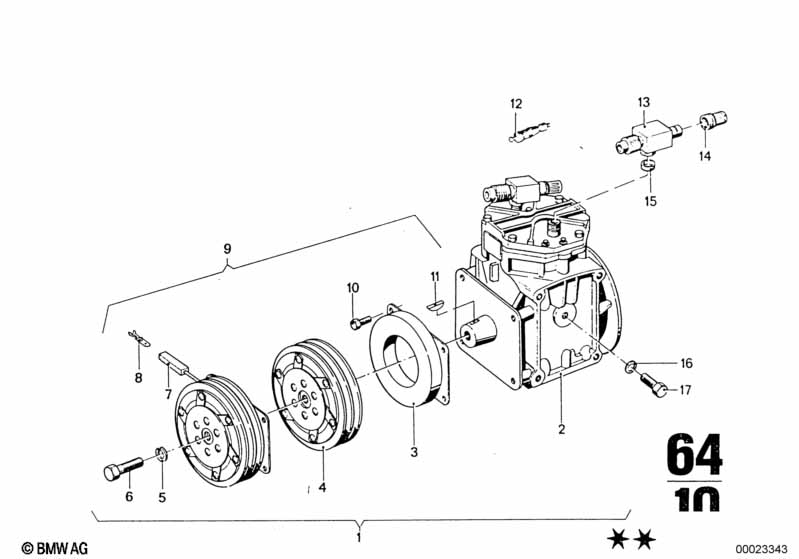

This Kimatanläggning technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Sonderzubehör -> Fg Modell 73 -> Usa Modell 74 |
||||||||||
| 01 | RP AC-kompressor | 1 | 64521352109 | Avslutad | Shop at ECS Tuning | |||||
| 02 | RP AC-kompressor | 1 | 64521351910 | Avslutad | Shop at ECS Tuning | |||||
| 05 | Fjaederring | B8 | 1 | 08/1968 | 02/1977 | 07119933096 | $0.18 | Shop at ECS Tuning | ||
| 06 | Sexkantskruv | 1 | 64521352215 | Avslutad | Shop at ECS Tuning | |||||
| 07 | Isolerstycke | 1 | 61131351093 | Avslutad | Shop at ECS Tuning | |||||
| 08 | Flatkontakt | 1 | 61138061782 | $0.63 | Avslutad | Shop at ECS Tuning | ||||
| 09 | Magnetkoppling | 1 | 64521351911 | $321.54 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 10 | Planfjaeder | 4X6,5 | 1 | 07119951461 | $0.87 | Shop at ECS Tuning | ||||
| 11 | Sexkantskruv | 4 | 64521352217 | Avslutad | Shop at ECS Tuning | |||||
| 12 | Ventilinsats | 1 | 64521354981 | $5.19 | Shop at ECS Tuning | |||||
| 13 | Ventilinsats | 2 | 64521356613 | $45.30 | Avslutad | Shop at ECS Tuning | ||||
| 14 | Skyddskaapa | 2 | 64521352080 | Avslutad | Shop at ECS Tuning | |||||
| 15 | Packning | 2 | 64521352082 | $6.77 | Avslutad | Shop at ECS Tuning | ||||
| 16 | O-ring | 1 | 64521352081 | Avslutad | Shop at ECS Tuning | |||||
| 17 | Sexkantskruv | 1 | 64521352216 | Avslutad | Shop at ECS Tuning | |||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
