Parkeringsvärme for BMW 5 Series E60 525i (2004)

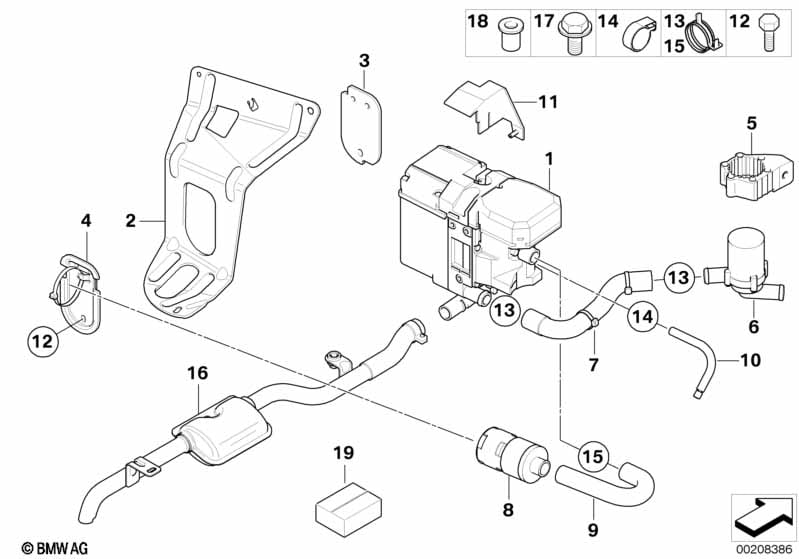

This Parkeringsvärme technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Parkeringsvärme | 1 | 64126986228 | Shop at ECS Tuning | ||||||
| 02 | Hållare foer kupevaermare | 1 | 64126912741 | Shop at ECS Tuning | ||||||
| 03 | Mothållare | 1 | 64126927715 | Shop at ECS Tuning | ||||||
| 04 | Spännplatta | 1 | 64126922656 | Shop at ECS Tuning | ||||||
| 05 | Upptagande, vattenpump | 1 | 64119114928 | Shop at ECS Tuning | ||||||
| 06 | Vattenpump kupevaermare | 1 | 09/2006 | 64129227715 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Upptagande, vattenpump | 1 | 09/2006 | 64119114928 | Shop at ECS Tuning | |||||
| 06 | Vattenpump kupevaermare | 1 | 64129227715 | Shop at ECS Tuning | ||||||
| 07 | Formslang | 1 | 64126921022 | Shop at ECS Tuning | ||||||
| 08 | Insugningsljuddämpare | 1 | 64126900997 | Shop at ECS Tuning | ||||||
| 09 | Luftinsugningsslang | 1 | 64126912739 | Avslutad | Shop at ECS Tuning | |||||
| 10 | Bränsleslang | 1 | 64126912742 | Shop at ECS Tuning | ||||||
| 11 | Skydd | 1 | 64126933608 | Shop at ECS Tuning | ||||||
| 12 | Sexkantskruv | 3 | 64128376447 | Shop at ECS Tuning | ||||||
| 13 | Slangklaemma | D=27MM | 1 | 64217518579 | $1.28 | Shop at ECS Tuning | ||||
| 14 | Slangklaemma | 66/100 | 1 | 64121378285 | $1.03 | Shop at ECS Tuning | ||||
| 15 | Slangklaemma | D=23MM | 1 | 17127515471 | $1.80 | Shop at ECS Tuning | ||||
| 16 | Avgasrohr/ljuddaempare | 1 | 64126912744 | Shop at ECS Tuning | ||||||
| 17 | Sexkantskruv med bricka | M6X20 | 1 | 07119904527 | $0.44 | Shop at ECS Tuning | ||||
| 18 | Popnitmutter sänkhuvud | M6 | 1 | 64128385213 | Shop at ECS Tuning | |||||
| Man får inte montera en reparationssats under garantitiden. |
||||||||||
| 19 | Reparationsset parkeringsvärme bensin | 1 | 64129145098 | Shop at ECS Tuning | ||||||
| 19 | Reparationsset parkeringsvärme diesel | 1 | 64129145099 | Shop at ECS Tuning | ||||||
| INNEHALLAT Formslang Tätningssats parkeringsvärmare Skruvsats Brännarinsats parkeringsvärmare |
||||||||||
Notering
- Avslutad = delen tillverkas inte längre.
