Kylmedelledning for BMW 5 Series E60 525i (2004)

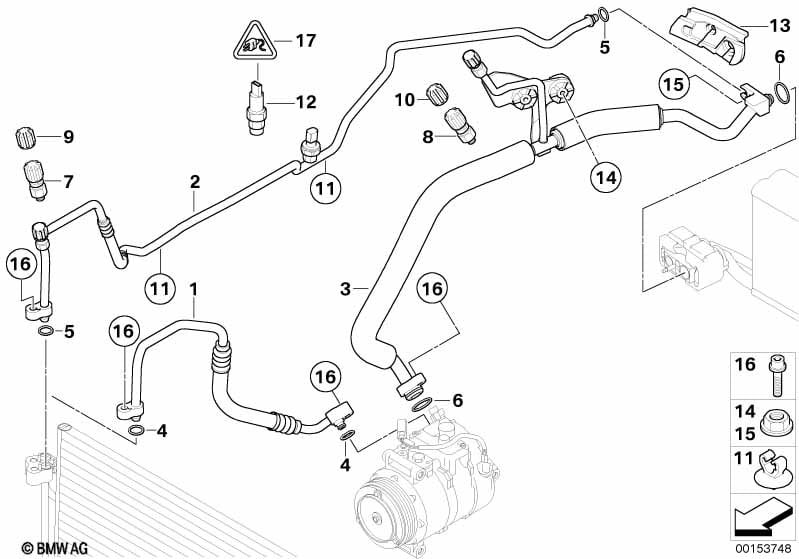

This Kylmedelledning technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tryckledning kompressor-kondensator | 1 | 64536910804 | $87.17 | Shop at ECS Tuning | |||||
| 02 | Tryckledning kondensator förångar | 1 | 64509193128 | $162.30 | Shop at ECS Tuning | |||||
| 03 | Insugningsroer | 1 | 64539155334 | $165.68 | Shop at ECS Tuning | |||||
| 04 | Packning | D=10,8 MM | 2 | 64508375741 | $2.04 | Shop at ECS Tuning | ||||
| 05 | Packning | 9,5X2,5 | 2 | 64508374959 | $2.69 | Shop at ECS Tuning | ||||
| 06 | Packning | D=13,7 MM | 2 | 64538375742 | $1.93 | Shop at ECS Tuning | ||||
| PASSAR ENDASTI TILL TRYCKLEDNING |
||||||||||
| 07 | Ventilinsats tryckledning | R134A | 1 | 64509177577 | $10.87 | Shop at ECS Tuning | ||||
| PASSAR ENDASTI TILL INSUGNINGSROER |
||||||||||
| 08 | Ventilinsats sugledning | R134A | 1 | 64509177579 | $10.87 | Shop at ECS Tuning | ||||
| 09 | Skyddskåpa tryckledning | R134A | 1 | 64538387438 | $0.82 | Shop at ECS Tuning | ||||
| 10 | Skyddskåpa sugledning | R134A | 1 | 64538387437 | $0.81 | Shop at ECS Tuning | ||||
| 11 | Ledningsclip | D= 10MM | 2 | 64536919700 | $0.72 | Shop at ECS Tuning | ||||
| 12 | Trycksensor | 1 | 64539323658 | Shop at ECS Tuning | ||||||
| 13 | Bussning klimatanläggningsledning | 1 | 64536915174 | $7.35 | Shop at ECS Tuning | |||||
| 14 | Sexkantmutter | BM6-8-ZNNIV SI | 2 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Sexkantmutter med plaata | AM6-8-ZNNIV SI | 1 | 07129905542 | $0.47 | Shop at ECS Tuning | ||||
| 16 | Skruv ctt med plaata | M8X30-U1-ZNS3 | 4 | 07119905720 | $0.47 | Shop at ECS Tuning | ||||
| 17 | Universal stickkontaktkåpa utan kod | 3 POL. | 1 | 02/2005 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt MQS ELA med kabel | 0,5-0,75 MM² AG | 3 | 02/2005 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Enkelledartätning | 0,5-1,5 MM² | 3 | 02/2005 | 61138353706 | $0.27 | Shop at ECS Tuning | |||
| 17 | Rep.-sats hylskontakthus | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt MQS ELA med kabel | 0,5-0,75 MM² AG | 3 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Enkelledartätning | 0,5-1,5 MM² | 3 | 61138353706 | $0.27 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i Kylmedelledning?
- This technical diagram illustrates the Kylmedelledning within the Värmesystem och luftkonditionering group for the 5 Series E60 525i produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Tryckledning kompressor-kondensator (Part #64536910804).
- Which models use the hardware listed in this Kylmedelledning?
- The hardware and components featured in the Kylmedelledning are specific to the 5 Series E60 525i produced during 2004. These technical specifications ensure that parts like the Tryckledning kompressor-kondensator (64536910804) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Kylmedelledning assembly?
- Each item in the Kylmedelledning corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the Tryckledning kompressor-kondensator by locating its position on the schematic, which then links to the official BMW part number 64536910804 for the Värmesystem och luftkonditionering section.
