Vattenslang kupevärmare for BMW 3 Series E91 320i (2007)

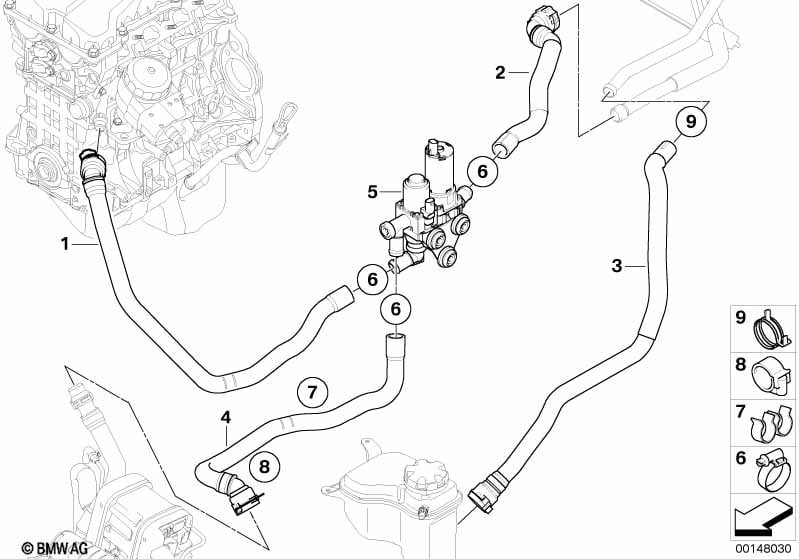

This Vattenslang kupevärmare technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med Parkeringsvärme |
S536A=Ja |
||||||||
| 01 | Slang motorinsug-omkopplingsventil | 1 | 64126953089 | Shop at ECS Tuning | ||||||
| 02 | Slang värmeelement-omkopplingsventil | 1 | 64126953090 | $23.71 | Shop at ECS Tuning | |||||
| 03 | Slang f vaermeelem.och motoraatergaang | 1 | 64216951946 | $29.86 | Shop at ECS Tuning | |||||
| 04 | Slang omkoppl.ventil-parkeringsvärmare | 1 | 09/2006 | 64219111763 | Shop at ECS Tuning | |||||
| 05 | Omkopplingsventil | 1 | 64126951813 | Shop at ECS Tuning | ||||||
| 06 | Slangklaemma | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Slangfaeste | 1 | 64216904030 | $1.10 | Shop at ECS Tuning | |||||
| 08 | Slangfaeste | 2 | 64216930041 | $0.55 | Shop at ECS Tuning | |||||
| 09 | Fjäderbandsklämma | D=25MM | 1 | 64213405930 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 320i Vattenslang kupevärmare?
- This technical diagram illustrates the Vattenslang kupevärmare within the Värmesystem och luftkonditionering group for the 3 Series E91 320i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Slang motorinsug-omkopplingsventil (Part #64126953089).
- Which models use the hardware listed in this Vattenslang kupevärmare?
- The hardware and components featured in the Vattenslang kupevärmare are specific to the 3 Series E91 320i produced during 2007. These technical specifications ensure that parts like the Slang motorinsug-omkopplingsventil (64126953089) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vattenslang kupevärmare assembly?
- Each item in the Vattenslang kupevärmare corresponds to the numbered list below the illustration. For the 3 Series E91 320i, you can identify the Slang motorinsug-omkopplingsventil by locating its position on the schematic, which then links to the official BMW part number 64126953089 for the Värmesystem och luftkonditionering section.
