Kylvätskeslang värme-/klimatautomatik for BMW 5 Series G30 530iX (2020)

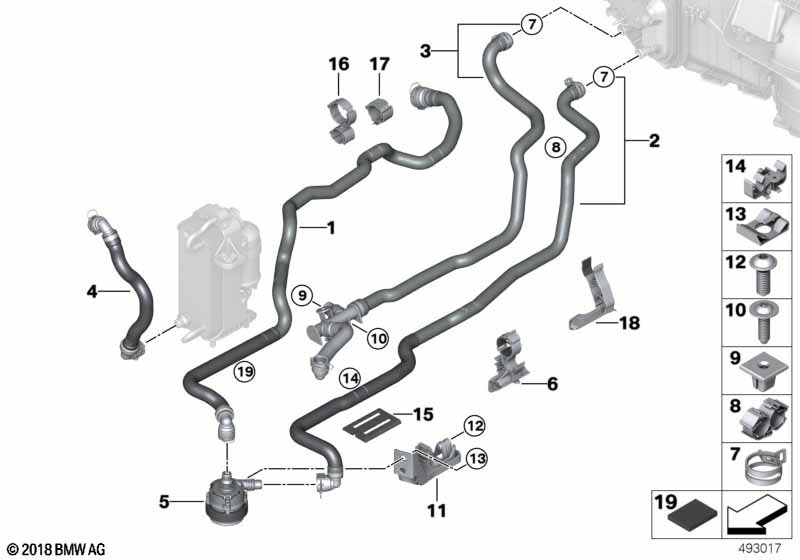

This Kylvätskeslang värme-/klimatautomatik technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med Återvinningssystem eller Klimatautomatik med 4-zonreglering eller Klimatautomatik eller Utförande för kallt klimat |
S1CEA=Nej S4NBA=Ja S534A=Ja S842A=Ja |
||||||||
| 01 | Kylvätskeslang tillopp 1 | 1 | 64216821250 | Shop at ECS Tuning | ||||||
| 02 | Kylvätskeslang tillopp 2 | 1 | 64216821252 | Shop at ECS Tuning | ||||||
| 03 | Kylvätskeslang återlopp | 1 | 64216821253 | Shop at ECS Tuning | ||||||
| 04 | Kylvätskeslang tillopp | 1 | 64219308346 | Shop at ECS Tuning | ||||||
| 05 | Extra kylvätskepump | 1 | 07/2021 | 64116834923 | Shop at ECS Tuning | |||||
| 06 | Kombinationsskaft | 1 | 64539303491 | Shop at ECS Tuning | ||||||
| 07 | Fjäderbandsklämma | D=25MM | 2 | 64213405930 | Shop at ECS Tuning | |||||
| 08 | Slangfäste, dubbel | NW16 | 1 | 64219353039 | Shop at ECS Tuning | |||||
| 09 | Expandermutter | 1 | 07147348512 | Shop at ECS Tuning | ||||||
| 10 | Linsskruv | ST5X17-ZNS3 | 1 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Fäste extra kylvätskepump | 1 | 64219303628 | Shop at ECS Tuning | ||||||
| 12 | Linsskruv | M6X16-ZNNIV-SI | 1 | 07149227852 | Shop at ECS Tuning | |||||
| 13 | Laasbricka | B8 | 2 | 07129904492 | Shop at ECS Tuning | |||||
| 14 | Dubbelclip | 1 | 64219326894 | Shop at ECS Tuning | ||||||
| 15 | Skurskydd | 1 | 64219385206 | Shop at ECS Tuning | ||||||
| 16 | Slanghållare vridbar | 1 | 07146844852 | Shop at ECS Tuning | ||||||
| 17 | Slangfaeste | 1 | 07146844851 | Shop at ECS Tuning | ||||||
| 18 | Slangfäste, dubbel | 1 | 64219128983 | Shop at ECS Tuning | ||||||
| 19 | Sats filtremsa självhäftande | 1 | 51452353024 | Shop at ECS Tuning | ||||||
