Radio Bavaria C for BMW 5 Series E34 518i (1994)

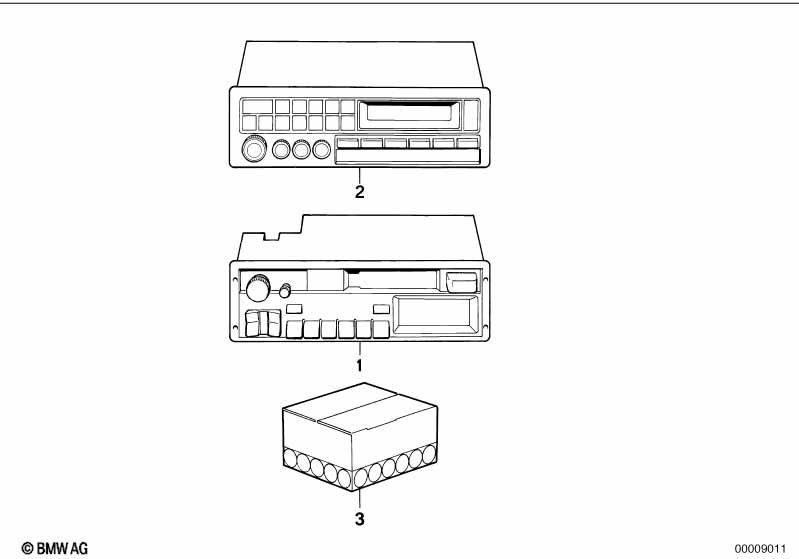

This Radio Bavaria C technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 518i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | RADIOS FRAN 9/91 ENDAST I KOMBINAT. MED Bruksanvisning |
|||||||||
| 01 | AT-radio BMW reverse RDS | 1 | 09/1996 | 65128368543 | $389.26 | Avslutad, +stomme | Shop at ECS Tuning | |||
| 01 | AT-radio bavaria C II | 1 | 65121391389 | Avslutad, +stomme | Shop at ECS Tuning | |||||
| 01 | AT-radio bavaria C reverse II | 1 | 65121391392 | Avslutad, +stomme | Shop at ECS Tuning | |||||
| 01 | Radio BMW Business CD | 1 | 65126909885 | $610.37 | Shop at ECS Tuning | |||||
| 01 | AT-radio bavaria C III | 1 | 65128353561 | Avslutad, +stomme | Shop at ECS Tuning | |||||
| 01 | AT-radio BMW reverse RDS | 1 | 65128368543 | $389.26 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 01 | AT-radio BMW reverse RDS | 1 | 65128368543 | $389.26 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 01 | AT-radio BMW reverse RDS | 1 | 65128368543 | $389.26 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 01 | Radio Bavaria C III | 1 | 65129060612 | Avslutad | Shop at ECS Tuning | |||||
| 01 | Radio Bavaria C Reverse III | 1 | 65129060613 | Avslutad | Shop at ECS Tuning | |||||
| 01 | Radio Bavaria C Reverse RDS | 1 | 65129060614 | Avslutad | Shop at ECS Tuning | |||||
| 01 | Radio Bavaria C II | 1 | 65129061563 | Avslutad | Shop at ECS Tuning | |||||
| 01 | Radio Bavaria C Reverse II | 1 | 65129061564 | $571.95 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 01 | Radio BMW Reverse RDS | 1 | 65129402082 | $906.75 | Avslutad | Shop at ECS Tuning | ||||
| 01 | Radio BMW Reverse | 1 | 65129402083 | Avslutad, +stomme | Shop at ECS Tuning | |||||
| För fordon med Antenn-Diversity |
=Ja |
|||||||||
| 01 | AT-radio BMW reverse RDS | 1 | 09/1994 | 65128360791 | Avslutad, +stomme | Shop at ECS Tuning | ||||
| 02 | AT-radio bavaria C exclusive | 4-OHM | 1 | 65121388363 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Radio Bavaria C Exclusive | 4-OHM | 1 | 65129061102 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
