Radio for BMW 5 Series E28 524td (1985)

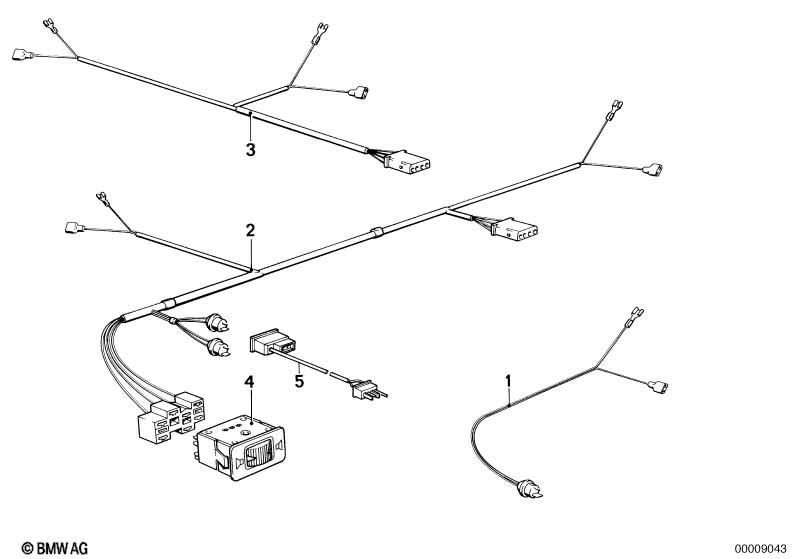

This Radio technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kabelsats fram | MONO | 2 | 65111367856 | $9.68 | Avslutad | Shop at ECS Tuning | |||
| 02 | Kabelstam delstycke fram | STEREO | 1 | 09/1986 | 65121369436 | $40.77 | Avslutad | Shop at ECS Tuning | ||
| 03 | Kabel delstycke bak | STEREO | 1 | 65121369437 | $17.19 | Avslutad | Shop at ECS Tuning | |||
| 04 | Fadereglage m flatkontakt | 1 | 65121368769 | $68.44 | Shop at ECS Tuning | |||||
| INTE PASSAR TILL RADIO BAVARIA C ELECTRONIC RADIO BAVARIA C EXCLUSIVE |
||||||||||
| 05 | Adapter ledning | STEREO | 1 | 09/1986 | 82119416306 | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
