Eletriska delar foer airbag for BMW 5 Series E60 525i (2004)

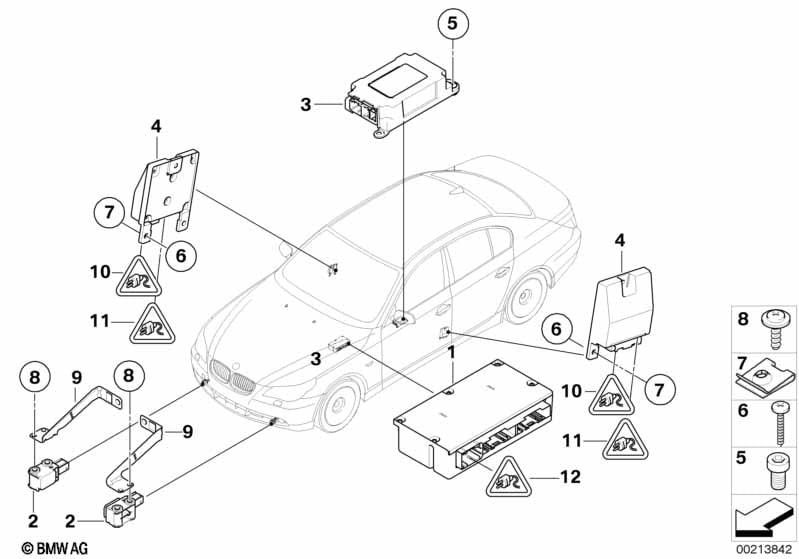

This Eletriska delar foer airbag technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med Servostyrning-servotronic eller Aktiv styrning |
S216A=Ja S217A=Ja |
|||||||||
| 01 | Styrenhet airbag med gateway-modul | 1 | 65776975686 | $940.63 | +stomme | Shop at ECS Tuning | ||||
| För fordon med Servostyrning-servotronic och Aktiv styrning |
S216A=Nej S217A=Nej |
|||||||||
| 01 | Styrenhet airbag med gateway-modul | 1 | 03/2005 | 65776975682 | $940.63 | +stomme | Shop at ECS Tuning | |||
| 03 | Sensor bilens mitt | 1 | 03/2004 | 09/2005 | 65776976465 | Avslutad | Shop at ECS Tuning | |||
| 04 | Sensor B-stolpe höger | 1 | 09/2005 | 65776962886 | $288.32 | Shop at ECS Tuning | ||||
| 04 | Sensor B-stolpe vänster | 1 | 09/2005 | 65776974364 | $288.32 | Shop at ECS Tuning | ||||
| 05 | Skruv ctt | 3 | 09/2005 | 51341961320 | $0.94 | Shop at ECS Tuning | ||||
| 06 | Linsskruv | ISA M5X20 | 6 | 09/2005 | 07140150280 | $0.25 | Shop at ECS Tuning | |||
| 07 | Plaatmutter | M5 | 6 | 09/2005 | 61131372033 | $1.37 | Shop at ECS Tuning | |||
| 10 | Universal stickkontaktkåpa utan kod | 18 POL. | 1 | 61138364666 | $0.68 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Skydd | 18 POL. Z-CODE | 1 | 61136905226 | $2.07 | Shop at ECS Tuning | ||||
| -- | Rep.kabel A-,B-dörrstolpe/sidoairbag | X | 61129118138 | $22.15 | Shop at ECS Tuning | |||||
| 11 | Stickkontaktkaapa | 5 POL. - Z-CODE | 1 | 61138382044 | $7.28 | Shop at ECS Tuning | ||||
| 12 | Stickkontaktkaapa | 26 POL. /A | 1 | 12521744633 | $1.73 | Shop at ECS Tuning | ||||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt MQS med kabel | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Fiberoptisk kabel hylskontakt | X | 61136906554 | Shop at ECS Tuning | ||||||
| -- | Stickkontaktkaapa | 2 | 61138384572 | $7.45 | Shop at ECS Tuning | |||||
| -- | Stickkontaktkaapa | 26POL. /B | 1 | 12521744634 | $1.73 | Shop at ECS Tuning | ||||
| -- | Skydd | 52POL./Z-CODE | 1 | 12527526424 | $4.88 | Shop at ECS Tuning | ||||
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
- Avslutad = delen tillverkas inte längre.
