Delar hoegtalare avlaeggn.botten bak for BMW 3 Series E90 LCI 318i (2011)

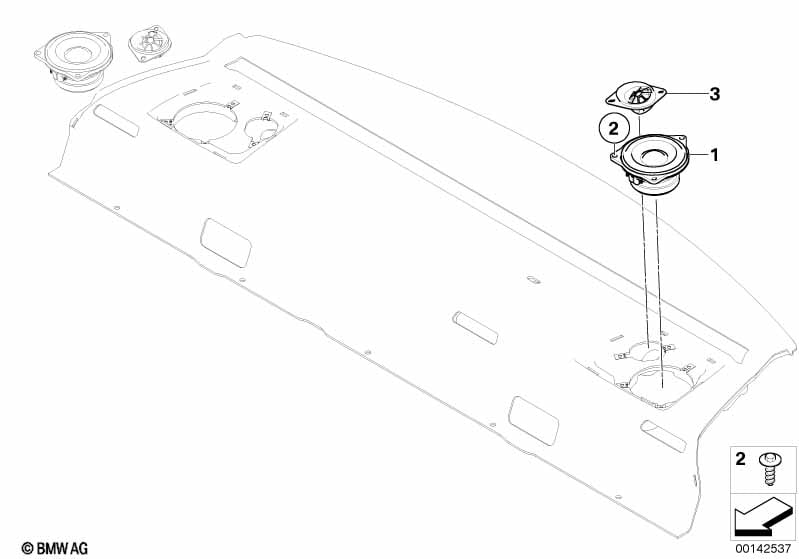

This Delar hoegtalare avlaeggn.botten bak technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mellanfrekvenshögtalare Stereo/HiFi | 2 | 65139141494 | $40.38 | Shop at ECS Tuning | |||||
| För fordon med HiFi-Högtalarsystem |
S676A=Ja |
|||||||||
| 01 | Medeltonshögtalare Hifi | 2 | 65139143153 | $46.35 | Shop at ECS Tuning | |||||
| För fordon med HiFi-system Professional DSP eller Harman/Kardon surroundljudsystem |
S677A=Ja S688A=Ja |
|||||||||
| 01 | Mellanregisterhoegtalare top-hifi | 2 | 65139143121 | $86.73 | Shop at ECS Tuning | |||||
| 02 | Sexkantplaatskruv | ST4,8X19-U2 SW | 10 | 07119904288 | $2.05 | Shop at ECS Tuning | ||||
| För fordon med Harman/Kardon surroundljudsystem |
S688A=Ja |
|||||||||
| 03 | Högtonshögtalare Harman Kardon | 2 | 03/2010 | 65139217912 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 318i Delar hoegtalare avlaeggn.botten bak?
- This technical diagram illustrates the Delar hoegtalare avlaeggn.botten bak within the Audio, Navigation, elektr.System group for the 3 Series E90 LCI 318i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Mellanfrekvenshögtalare Stereo/HiFi (Part #65139141494).
- Which models use the hardware listed in this Delar hoegtalare avlaeggn.botten bak?
- The hardware and components featured in the Delar hoegtalare avlaeggn.botten bak are specific to the 3 Series E90 LCI 318i produced during 2011. These technical specifications ensure that parts like the Mellanfrekvenshögtalare Stereo/HiFi (65139141494) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Delar hoegtalare avlaeggn.botten bak assembly?
- Each item in the Delar hoegtalare avlaeggn.botten bak corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 318i, you can identify the Mellanfrekvenshögtalare Stereo/HiFi by locating its position on the schematic, which then links to the official BMW part number 65139141494 for the Audio, Navigation, elektr.System section.
