DAB-mottagarmodul for BMW 5 Series E61 LCI 535d (2010)

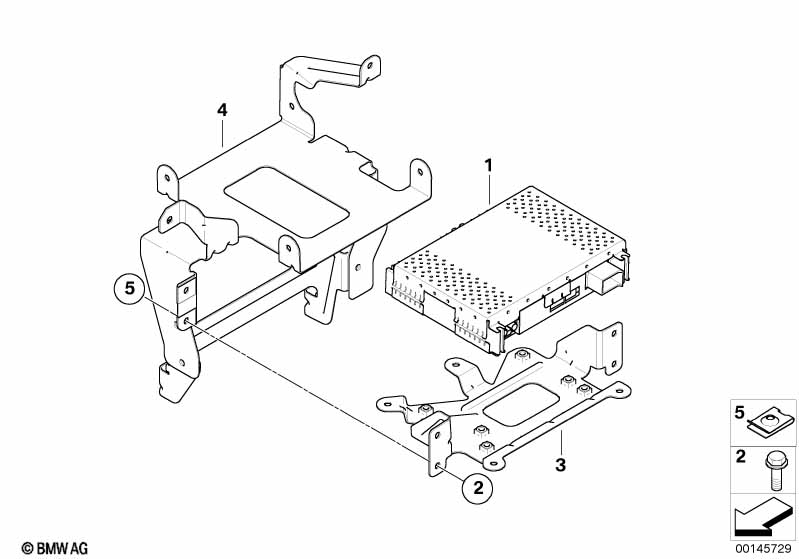

This DAB-mottagarmodul technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med DAB-mottagarmodul |
S654A=Ja |
||||||||
| 01 | DAB-mottagarmodul | 1 | 65129216459 | Shop at ECS Tuning | ||||||
| 02 | Sexkantskruv | M5X14 | 7 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 03 | Hållare, satellitradio/kompensator | 1 | 65156927492 | $13.63 | Shop at ECS Tuning | |||||
| 04 | Hållare för videomodul | 1 | 65159120726 | $19.95 | Shop at ECS Tuning | |||||
| 05 | Plaatmutter | M5 | 6 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E61 LCI 535d DAB-mottagarmodul?
- This technical diagram illustrates the DAB-mottagarmodul within the Audio, Navigation, elektr.System group for the 5 Series E61 LCI 535d produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the DAB-mottagarmodul (Part #65129216459).
- Which models use the hardware listed in this DAB-mottagarmodul?
- The hardware and components featured in the DAB-mottagarmodul are specific to the 5 Series E61 LCI 535d produced during 2010. These technical specifications ensure that parts like the DAB-mottagarmodul (65129216459) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the DAB-mottagarmodul assembly?
- Each item in the DAB-mottagarmodul corresponds to the numbered list below the illustration. For the 5 Series E61 LCI 535d, you can identify the DAB-mottagarmodul by locating its position on the schematic, which then links to the official BMW part number 65129216459 for the Audio, Navigation, elektr.System section.
