DVD-spelare for BMW 5 Series E60 525i (2005)

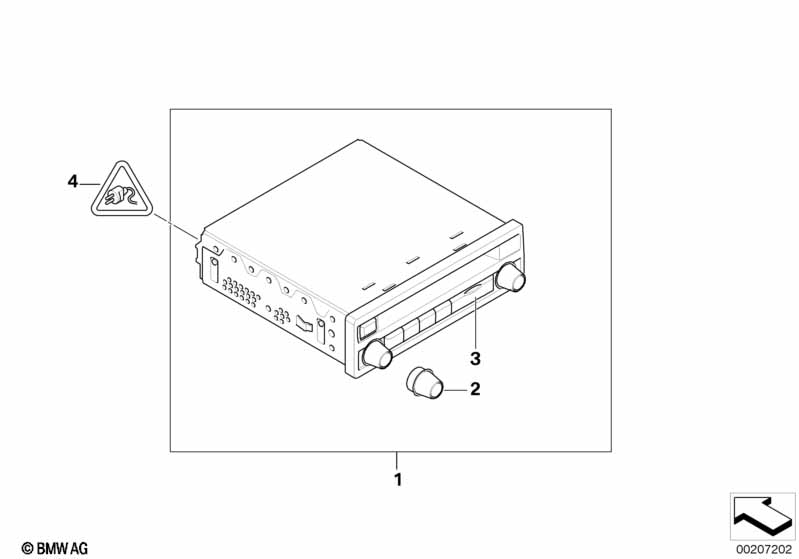

This DVD-spelare technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Stickkontaktkaapa | 10 POL. | 1 | 61136913666 | Shop at ECS Tuning | |||||
| endasti i kombination med | ||||||||||
| -- | Hylskontakt MQS ELA | 0.2-0.5 MM² SN | X | 61131393704 | $0.23 | Shop at ECS Tuning | ||||
| -- | Hylskontakt MQS ELA | 0,5-0,75 MM² AG | X | 61136931880 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i DVD-spelare?
- This technical diagram illustrates the DVD-spelare within the Audio, Navigation, elektr.System group for the 5 Series E60 525i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Stickkontaktkaapa (Part #61136913666).
- Which models use the hardware listed in this DVD-spelare?
- The hardware and components featured in the DVD-spelare are specific to the 5 Series E60 525i produced during 2005. These technical specifications ensure that parts like the Stickkontaktkaapa (61136913666) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the DVD-spelare assembly?
- Each item in the DVD-spelare corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the Stickkontaktkaapa by locating its position on the schematic, which then links to the official BMW part number 61136913666 for the Audio, Navigation, elektr.System section.
