Individuellt ljudsystem dörr fram for BMW 3 Series E90 LCI 318i (2011)

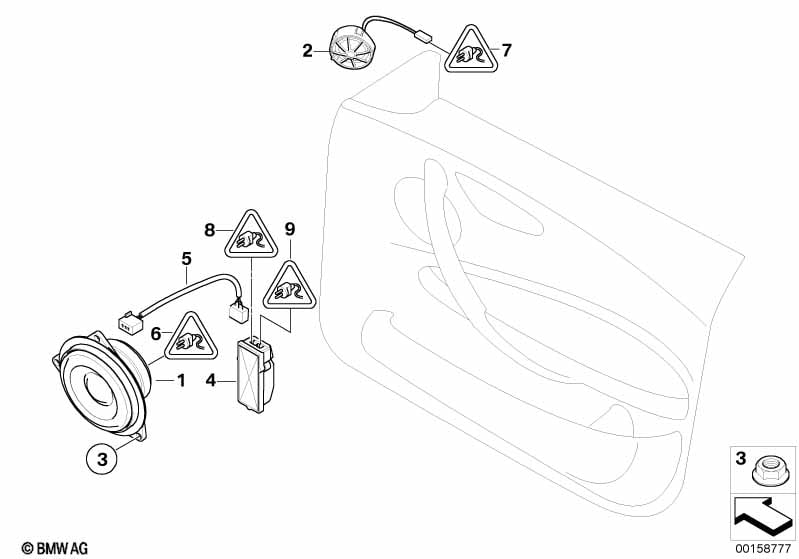

This Individuellt ljudsystem dörr fram technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med Individual audio system |
S752A=Ja |
||||||||
| 01 | Mellanregisterhögtalare Individual Audio | 2 | 09/2007 | 65137838905 | $171.83 | +stomme | Shop at ECS Tuning | |||
| 02 | Diskanthögtalare Individual Audio | 2 | 09/2007 | 65137839500 | $79.17 | +stomme | Shop at ECS Tuning | |||
| 03 | Sexkantmutter | M5 | 6 | 09/2007 | 07119905710 | $2.83 | Shop at ECS Tuning | |||
| 03 | Sexkantmutter | M5 | 6 | 09/2007 | 07129906048 | $0.73 | Shop at ECS Tuning | |||
| 04 | Frkvensdelningsfilter | 2 | 09/2007 | 65137838929 | $37.16 | +stomme | Shop at ECS Tuning | |||
| 05 | Förbindelseledning | 2 | 09/2007 | 65137840987 | $20.70 | Shop at ECS Tuning | ||||
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
