Delar Stereo System dörr fram for BMW 5 Series G30 520i (2020)

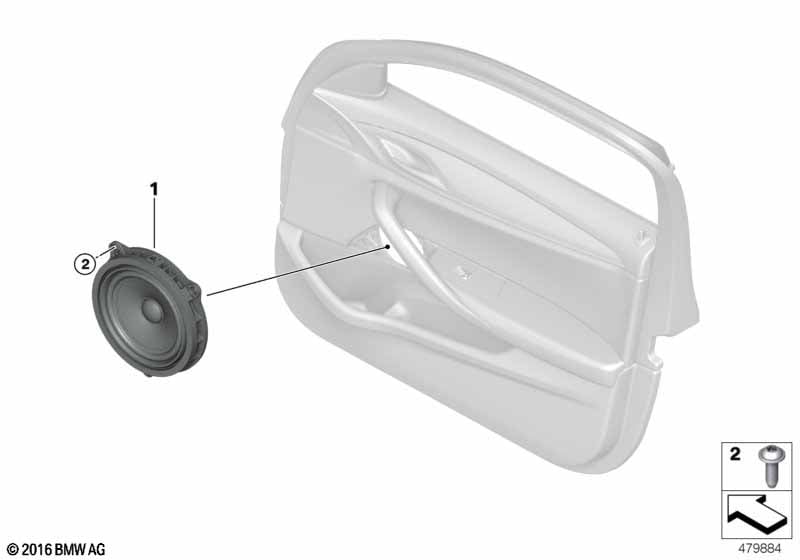

This Delar Stereo System dörr fram technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med HiFi-Högtalarsystem och Harman/Kardon surroundljudsystem och Bowers & Wilkins High End Sound System |
S676A=Nej S688A=Nej S6F1A=Nej |
||||||||
| 01 | Mellanregisterhoegtalare | 2 | 65139395858 | Shop at ECS Tuning | ||||||
| 02 | Linsskruv | TS 5X16 | 3 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 520i Delar Stereo System dörr fram?
- This technical diagram illustrates the Delar Stereo System dörr fram within the Audio, Navigation, elektr.System group for the 5 Series G30 520i produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Mellanregisterhoegtalare (Part #65139395858).
- Which models use the hardware listed in this Delar Stereo System dörr fram?
- The hardware and components featured in the Delar Stereo System dörr fram are specific to the 5 Series G30 520i produced during 2020. These technical specifications ensure that parts like the Mellanregisterhoegtalare (65139395858) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Delar Stereo System dörr fram assembly?
- Each item in the Delar Stereo System dörr fram corresponds to the numbered list below the illustration. For the 5 Series G30 520i, you can identify the Mellanregisterhoegtalare by locating its position on the schematic, which then links to the official BMW part number 65139395858 for the Audio, Navigation, elektr.System section.
