Delar hoegtalare avlaeggn.botten bak for BMW 5 Series G30 520i (2020)

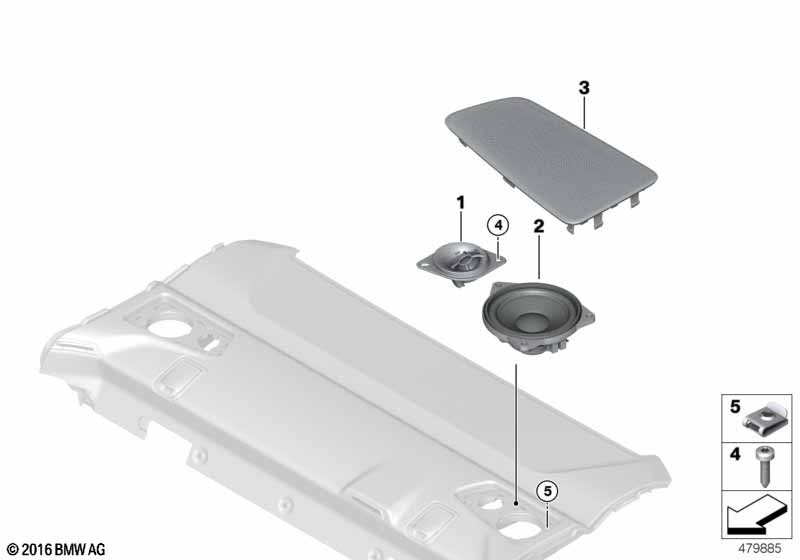

This Delar hoegtalare avlaeggn.botten bak technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| För fordon med Bowers & Wilkins High End Sound System |
S6F1A=Ja |
|||||||||
| 01 | Högtonshögtalare | 2 | 65139279631 | Shop at ECS Tuning | ||||||
| För fordon med Harman/Kardon surroundljudsystem |
S688A=Ja |
|||||||||
| 01 | Hoegtonshoegtalare top-hifi | 2 | 65139226358 | Shop at ECS Tuning | ||||||
| För fordon med HiFi-Högtalarsystem och Harman/Kardon surroundljudsystem och Bowers & Wilkins High End Sound System |
S676A=Ja S688A=Nej S6F1A=Nej |
|||||||||
| 01 | Högtonshögtalare | HIFI | 2 | 65139363549 | Shop at ECS Tuning | |||||
| För fordon med Bowers & Wilkins High End Sound System |
S6F1A=Ja |
|||||||||
| 02 | Mellanregisterhoegtalare | HIGH END | 2 | 65139279632 | Shop at ECS Tuning | |||||
| För fordon med Harman/Kardon surroundljudsystem |
S688A=Ja |
|||||||||
| 02 | Mellanregisterhögtalare Hifi/Top-Hifi | 2 | 65139368383 | Shop at ECS Tuning | ||||||
| För fordon med HiFi-Högtalarsystem och Harman/Kardon surroundljudsystem och Bowers & Wilkins High End Sound System |
S676A=Nej S688A=Nej S6F1A=Nej |
|||||||||
| 02 | Mellanregisterhoegtalare | 2 | 65139395859 | Shop at ECS Tuning | ||||||
| För fordon med HiFi-Högtalarsystem och Harman/Kardon surroundljudsystem och Bowers & Wilkins High End Sound System |
S676A=Ja S688A=Nej S6F1A=Nej |
|||||||||
| 02 | Mellanregisterhögtalare | HIFI | 2 | 65139354084 | Shop at ECS Tuning | |||||
| För fordon med Bowers & Wilkins High End Sound System |
S6F1A=Ja |
|||||||||
| 03 | Blaendare hoegtalare | LINKS | 1 | 65139365207 | Shop at ECS Tuning | |||||
| 03 | Blaendare hoegtalare | RECHTS | 1 | 65139365208 | Shop at ECS Tuning | |||||
| 04 | Plåtskruv svart | ST4,8X19MM | 10 | 07119907854 | Shop at ECS Tuning | |||||
| 05 | Plaatmutter | ST4,8-16-ZNS3 | 10 | 07129904243 | $0.36 | Shop at ECS Tuning | ||||
