High End Sound System dörr bak for BMW 5 Series G30 520i (2020)

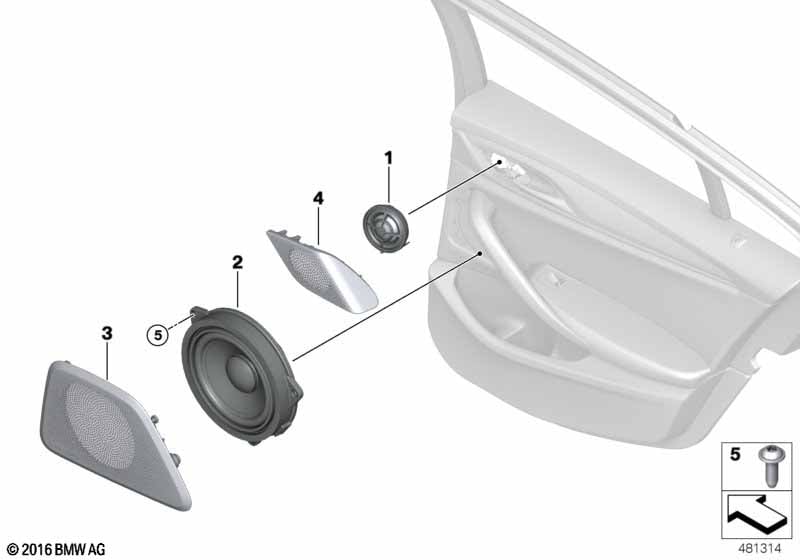

This High End Sound System dörr bak technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | För fordon med Bowers & Wilkins High End Sound System |
S6F1A=Ja |
||||||||
| 01 | Högtonshögtalare | 2 | 65139279629 | Shop at ECS Tuning | ||||||
| 02 | Mellanregisterhoegtalare | HIGH END | 2 | 65139279635 | Shop at ECS Tuning | |||||
| 03 | Skydd mellanregister-högtalare vänster | B & W | 1 | 65136824625 | Shop at ECS Tuning | |||||
| Inkl.LED | ||||||||||
| 03 | Skydd mellanregister-högtalare höger | B & W | 1 | 65136824626 | Shop at ECS Tuning | |||||
| 04 | Blaendare hoegtonshoegtalare hoeger | 1 | 65139350986 | Shop at ECS Tuning | ||||||
| 04 | Blaendare hoegtonshoegtalare vaenster | 1 | 65139350985 | Shop at ECS Tuning | ||||||
| 05 | Linsskruv | TS 5X16 | 6 | 51417067920 | $0.39 | Shop at ECS Tuning | ||||
