Vagnlyftare for BMW 5 Series E12 520 (1976)

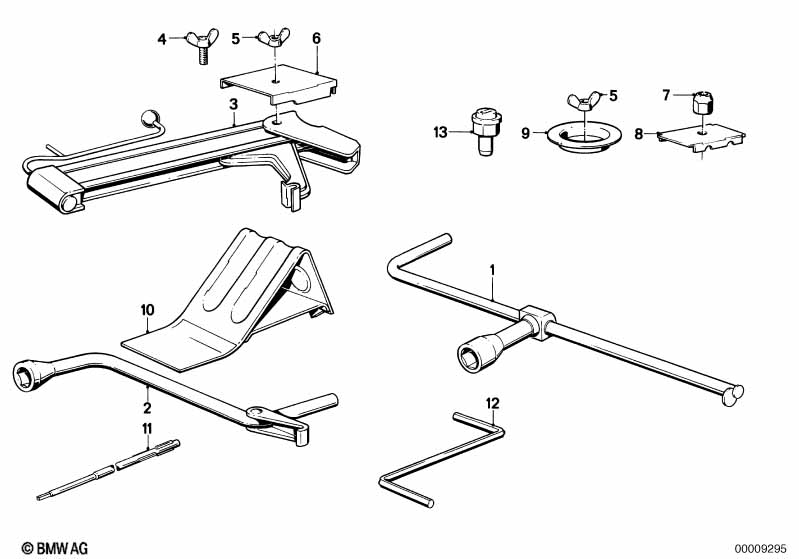

This Vagnlyftare technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Vev | 1 | 71121151250 | $29.85 | Avslutad | Shop at ECS Tuning | ||||
| 02 | Vev | 1 | 71121179953 | $14.56 | Shop at ECS Tuning | |||||
| 03 | Vagnlyftare | 1 | 71121150569 | $84.72 | Shop at ECS Tuning | |||||
| 05 | Vingmutter | M8 | 1 | 08/1973 | 07119924040 | $1.42 | Shop at ECS Tuning | |||
| 05 | Vingmutter | M8 | 1 | 08/1973 | 71151179257 | $3.25 | Avslutad | Shop at ECS Tuning | ||
| 06 | Hållare domkraft | 1 | 71121112226 | $1.13 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Hjulmutter | 1 | 36111106017 | $5.07 | Shop at ECS Tuning | |||||
| 08 | Haallare reservring | 1 | 05/1977 | 71159690012 | Avslutad | Shop at ECS Tuning | ||||
| 10 | Underläggskil aluminium | 1 | 71126756392 | $11.50 | Shop at ECS Tuning | |||||
| 11 | Noedtillslagning elekt.foensterhiss | 1 | 71111150191 | $9.02 | Shop at ECS Tuning | |||||
| 12 | Noedtillslagn.elekt.foenst.3elek.soltak | 1 | 54127199322 | $9.78 | Shop at ECS Tuning | |||||
| 13 | Noedtillslagning elekt.foensterhiss | 1 | 71111150500 | $8.18 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
