Mobility system for BMW 5 Series F10 530d (2011)

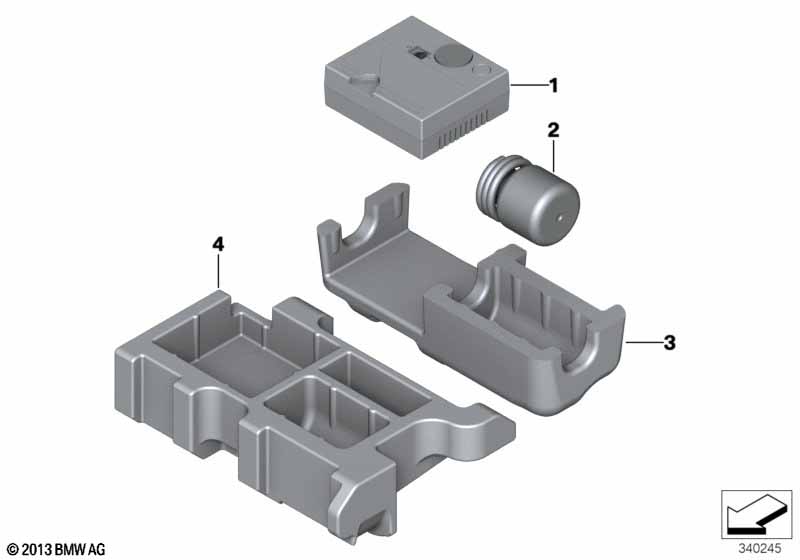

This Mobility system technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kompressor Mobility System | 1 | 71106792688 | +stomme | Shop at ECS Tuning | |||||
| 02 | Däcktätningsflaska | 300ML | 1 | 71106795461 | Shop at ECS Tuning | |||||
| 03 | Förvaring Mobility System | 1 | 71106792430 | Shop at ECS Tuning |
Notering
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 530d Mobility system?
- This technical diagram illustrates the Mobility system within the Utrustningsdetaljer group for the 5 Series F10 530d produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Kompressor Mobility System (Part #71106792688).
- Which models use the hardware listed in this Mobility system?
- The hardware and components featured in the Mobility system are specific to the 5 Series F10 530d produced during 2011. These technical specifications ensure that parts like the Kompressor Mobility System (71106792688) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mobility system assembly?
- Each item in the Mobility system corresponds to the numbered list below the illustration. For the 5 Series F10 530d, you can identify the Kompressor Mobility System by locating its position on the schematic, which then links to the official BMW part number 71106792688 for the Utrustningsdetaljer section.
