Tillbehoer-braensledunk for BMW 7 Series E23 728i (1982)

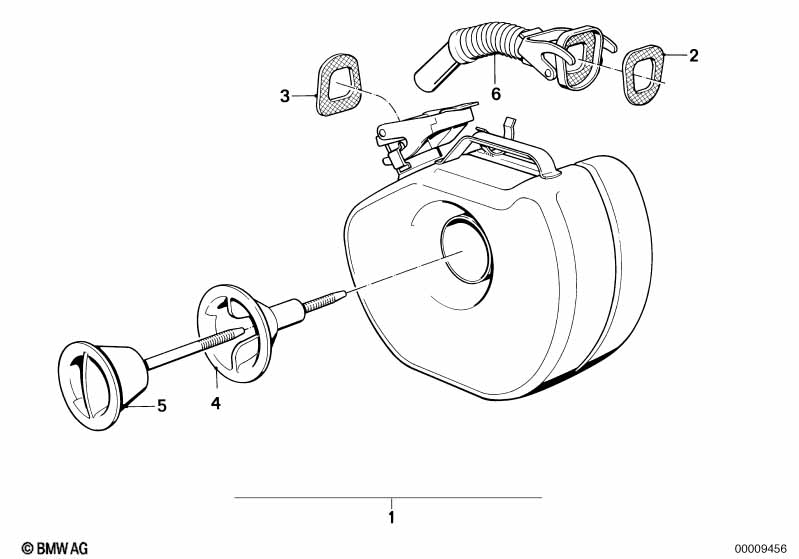

This Tillbehoer-braensledunk technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Dunk 6ltr. E23 | 1 | 82119413154 | Avslutad | Shop at ECS Tuning | |||||
| 02 | Tätningsgummi | 1 | 82119413143 | Avslutad | Shop at ECS Tuning | |||||
| 03 | Tätningsgummi | 1 | 82119413143 | Avslutad | Shop at ECS Tuning | |||||
| 04 | Hållare | 1 | 82119413159 | Avslutad | Shop at ECS Tuning | |||||
| 05 | Skruv | 1 | 82119413160 | Shop at ECS Tuning | ||||||
| 06 | Paafyllningsroer | 1 | 82119413137 | $25.67 | Avslutad | Shop at ECS Tuning |
Notering
- Avslutad = delen tillverkas inte längre.
