Delar SA 644 koffertrum for BMW 3 Series E46 318i (2003)

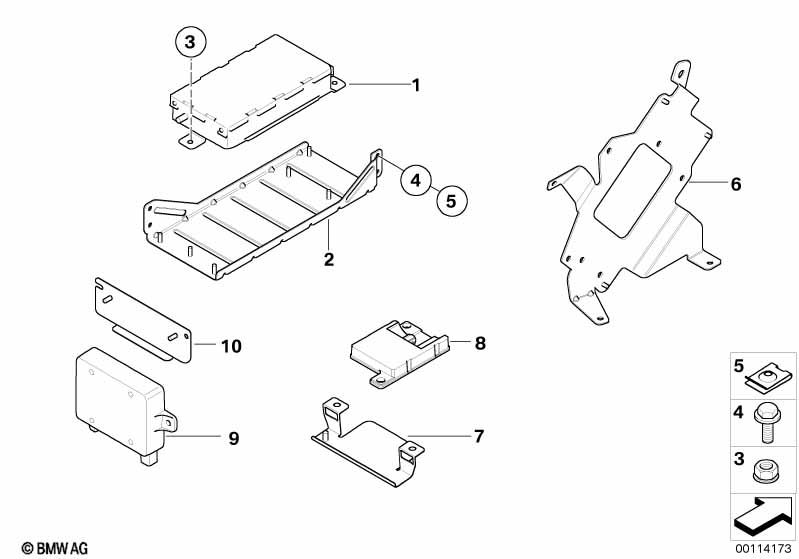

This Delar SA 644 koffertrum technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Laddningselektronik hands-free | 1 | 84109154358 | $569.47 | Avslutad | Shop at ECS Tuning | ||||
| För fordon med Navigationssystem Professional eller CD-växlare för 6 skivor eller HiFi-system Harman Kardon eller HiFi-Högtalarsystem eller Förberedelse BMW 6 CD-växlare I-buss |
S609A=Ja S672A=Ja S674A=Ja S676A=Ja S692A=Ja |
|||||||||
| 02 | Hållare Telematics Control Unit | 1 | 84136924553 | $10.26 | Shop at ECS Tuning | |||||
| 03 | Sexkantmutter med plaata | M5 | 3 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 04 | Sexkantskruv | M5X14 | 4 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Plaatmutter | M5 | 4 | 61131372033 | $1.37 | Shop at ECS Tuning | ||||
| 06 | Hållare Telematics Control Unit | 1 | 84136924550 | $12.99 | Avslutad | Shop at ECS Tuning | ||||
| 07 | Hållare f basantenn | 1 | 84136912160 | $3.86 | Shop at ECS Tuning | |||||
| 08 | Antenn | BLUETOOTH | 1 | 84506928461 | $24.30 | +stomme | Shop at ECS Tuning | |||
| tillval för montering | ||||||||||
| 09 | Ledningskompensator dualband | 1 | 84216932865 | $342.63 | Shop at ECS Tuning | |||||
| För fordon med Navigationssystem Professional eller CD-växlare för 6 skivor eller HiFi-system Harman Kardon eller HiFi-Högtalarsystem eller Förberedelse BMW 6 CD-växlare I-buss |
S609A=Ja S672A=Ja S674A=Ja S676A=Ja S692A=Ja |
|||||||||
| 10 | Plåthållare förstärkare | 1 | 84136908798 | $4.35 | Avslutad | Shop at ECS Tuning | ||||
Notering
- Avslutad = delen tillverkas inte längre.
- +stomme = stomavgift tillkommer (eventuell retur av den gamla delen)
