Individual mittkonsol for BMW 3 Series E90 LCI 318i (2011)

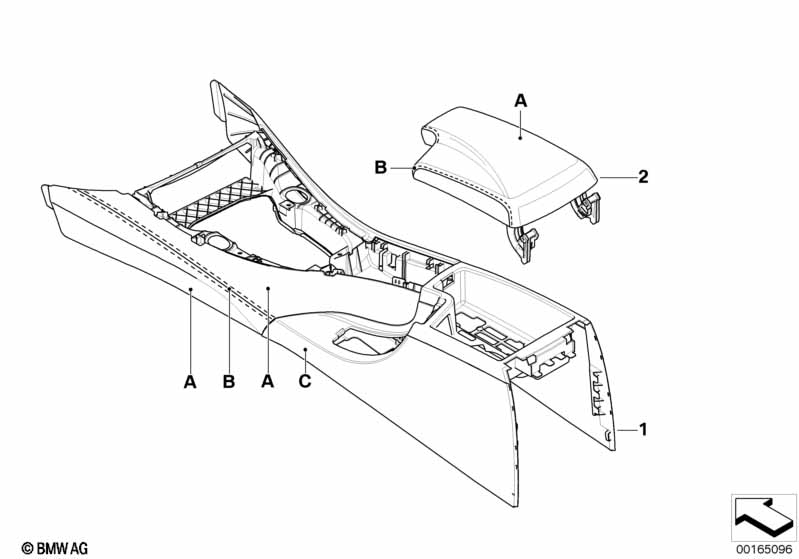

This Individual mittkonsol technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| Nr. | Beskrivning | Tillägg | antal | Från | Upp till | Reservdelsnummer | Pris | Notering | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Passar endast till individualfartyg med stoppningskod Z1XX -------------------------------- Observera ! Standardreservdelar eller komplettering inte möjlig via denna beställ-nr. ------------------------------- Specificeras vid beställning: . Reservdel för individual bilar: - reservdel-nr. - handlare-nr. - chassi-nr. . Komplettering av individualdel: - reservdel-nr. - handlare-nr. - chassi-nr. - (A) Reservdelsnummer läder - (B) Färgangivelse tråd = passande - (C) Färgangivelse softlack --------------------------- |
|||||||||
| 01 | Mittkonsol läder | INDIVIDUAL | 1 | 09/2008 | 51167974897 | NoS | Shop at ECS Tuning | |||
| 02 | Kåpa, mittkonsol | INDIVIDUAL | 1 | 09/2005 | 51167969506 | NoS | Shop at ECS Tuning | |||
Notering
- NoS = No Stock (Delen lagras inte centralt.)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 318i Individual mittkonsol?
- This technical diagram illustrates the Individual mittkonsol within the Individualutrustning group for the 3 Series E90 LCI 318i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Mittkonsol läder (Part #51167974897).
- Which models use the hardware listed in this Individual mittkonsol?
- The hardware and components featured in the Individual mittkonsol are specific to the 3 Series E90 LCI 318i produced during 2011. These technical specifications ensure that parts like the Mittkonsol läder (51167974897) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Individual mittkonsol assembly?
- Each item in the Individual mittkonsol corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 318i, you can identify the Mittkonsol läder by locating its position on the schematic, which then links to the official BMW part number 51167974897 for the Individualutrustning section.
