เบรกล้อหลัง ิBMW Performance for BMW 3 Series E90 LCI 325i (2009)

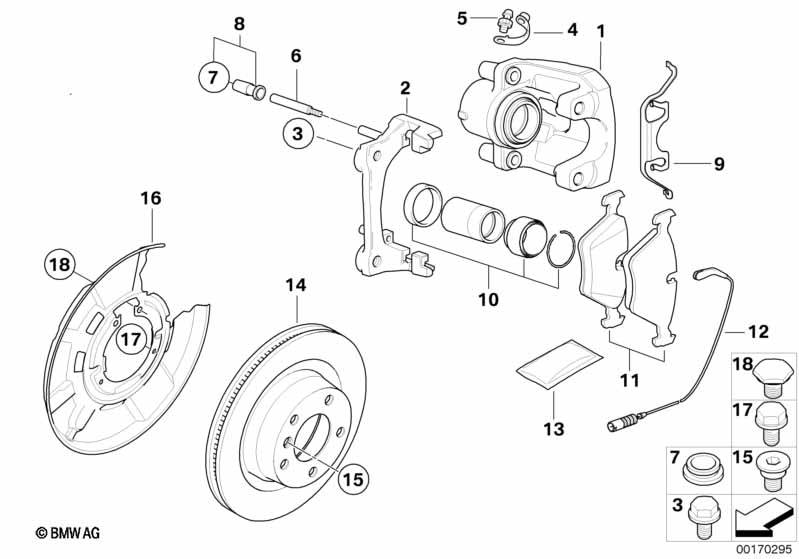

This เบรกล้อหลัง ิBMW Performance technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | เฉพาะการเปลี่ยน/ซ่อมเท่านั้นไม่ใช่เป็น ชตต.เพิ่มที่นำมาใช้เป็นชุดอุปกรณ์เบรก! สำหรับรถยนต์ที่มี พิกัดบรรทุกเพิ่มขึ้น และ เบรกแข็ง |
S100A=ไม่ S102A=ไม่ |
||||||||
| 01 | ตัวเรือนคาลิเปอร์ ด้านซ้าย | 1 | 03/2007 | 34216768697 | $315.09 | Shop at ECS Tuning | ||||
| 01 | ตัวเรือนคาลิเปอร์ ด้านขวา | 1 | 03/2007 | 34216768698 | $315.09 | Shop at ECS Tuning | ||||
| 02 | ส่วนรองรับเบรค | 2 | 03/2007 | 34216768696 | $181.18 | Shop at ECS Tuning | ||||
| 03 | สกรูหน้าแปลน, ระบบควบคุมอนุภาคขนาดเล็ก | M10X26,5 | 4 | 03/2007 | 34203414763 | $1.32 | Shop at ECS Tuning | |||
| 04 | ฝาปิดกันฝุ่น | 2 | 03/2007 | 34111153198 | $6.15 | Shop at ECS Tuning | ||||
| 05 | วาล์วไล่ลม | 2 | 03/2007 | 34116758107 | $6.58 | Shop at ECS Tuning | ||||
| 06 | โบลท์นำร่อง | 4 | 03/2007 | 34111157041 | $20.02 | Shop at ECS Tuning | ||||
| 07 | ปลั๊กอุดกัน | 4 | 03/2007 | 34111154979 | $1.80 | Shop at ECS Tuning | ||||
| 08 | ชุดซ่อม ปลอกนำร่อง | 2 | 03/2007 | 06/2013 | 34111157038 | $25.37 | ENDED | Shop at ECS Tuning | ||
| 09 | คลิป | 2 | 03/2007 | 34211157046 | $9.92 | Shop at ECS Tuning | ||||
| 10 | ชุดปะเก็น เบรคคาลิเปอร์ | 2 | 03/2007 | 34116763995 | $39.47 | Shop at ECS Tuning | ||||
| 11 | ชุดซ่อม ผ้าเบรคปลอดแร่ใยหิน | 1 | 03/2007 | 34216774692 | $97.48 | Shop at ECS Tuning | ||||
| นอกจากนี้ จำเป็นต้องมีอุปกรณ์ ดังต่อไปนี้ - เซ็นเซอร์ผ้าเบรก - ครีมทาผ้าเบรก สำหรับรถที่มีอายุใช้งานมากกว่า 48 เดือน ขอแนะนำให้ดำเนินการต่อไปนี้เพิ่มเติม - เปลี่ยนสปริงยึด ดูที่ คำแนะนำการซ่อม ! |
||||||||||
| 12 | เซ็นเซอร์การสึกของผ้าเบรก | 1 | 03/2007 | 34356789445 | $25.20 | Shop at ECS Tuning | ||||
| 13 | ครีมทาผ้าเบรก | 3G | 1 | 03/2007 | 83192158851 | Shop at ECS Tuning | ||||
| 14 | จานเบรคแบบมีร่องระบายอากาศ | 300X20 | 2 | 03/2007 | 04/2011 | 34216764651 | $104.46 | ENDED | Shop at ECS Tuning | |
| 15 | โบลท์หกเหลี่ยม ด้านใน | M8X14 | 2 | 03/2007 | 34211161806 | $1.38 | Shop at ECS Tuning | |||
| 16 | แผงป้องกัน ด้านขวา | 1 | 03/2007 | 06/2011 | 34216762858 | $18.13 | ENDED | Shop at ECS Tuning | ||
| 16 | แผงป้องกัน ด้านขวา | 1 | 03/2007 | 34216792240 | Shop at ECS Tuning | |||||
| 16 | แผงป้องกัน ด้านซ้าย | 1 | 03/2007 | 34216762857 | $18.13 | ENDED | Shop at ECS Tuning | |||
| 16 | แผงป้องกัน ด้านซ้าย | 1 | 03/2007 | 34216792239 | Shop at ECS Tuning | |||||
| 17 | โบลท์หัวหกเหลี่ยมพร้อมแหวนรอง | M6X12-U1 | 4 | 03/2007 | 07119904511 | $0.62 | Shop at ECS Tuning | |||
| 18 | โบลท์หัวหกเหลี่ยม | M8 | 4 | 03/2007 | 34211164044 | $1.03 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
