JCW Aerodynamics Package - R50, R53 for BMW MINI R50 Cooper (2000)

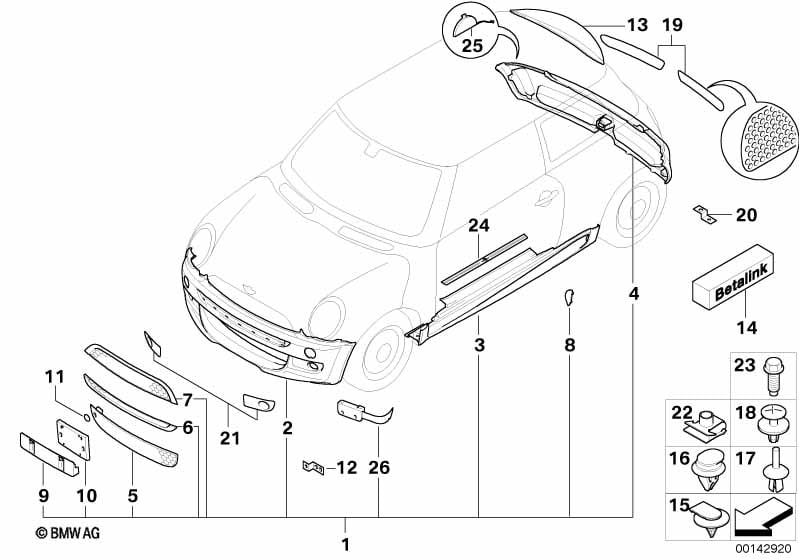

This JCW Aerodynamics Package - R50, R53 technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | สิ่งสำคัญ : จะไม่มีคำแนะนำในการติดตั้ง (EBA) สำหรับ ชุดติดตั้งเพิ่มเติม ให้พิมพ์คำแนะนำ ในการติดตั้งฉบับล่าสุดออกมาจากพอร์ทัล การให้ความช่วยเหลือหลังการขาย (ASAP) และส่งมอบให้กับลูกค้า |
|||||||||
| สำหรับรถยนต์ที่มี ระบบควบคุมระยะการจอด (PDC) |
S508A=ไม่ |
|||||||||
| 01 | ชุดแอโรไดนามิก, ลงสีพื้นแล้ว | 1 | 51190153270 | ENDED, +core | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ตัวยึด ด้านหลัง | 1 | 51120152925 | $13.25 | Shop at ECS Tuning | |||||
| สำหรับรถยนต์ที่มี ระบบควบคุมระยะการจอด (PDC) |
S508A=ใช่ |
|||||||||
| 01 | ชุดแอโรไดนามิก, ลงสีพื้นแล้ว | 1 | 51190153268 | ENDED, +core | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ตัวยึด ด้านหลัง | 1 | 51120152925 | $13.25 | Shop at ECS Tuning | |||||
| 02 | แผงด้านหน้า, ลงสีพื้นแล้ว | 1 | 51110021929 | ENDED, +core | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ตะแกรงกันชนด้านหน้า | 1 | 51110139106 | $60.00 | ENDED | Shop at ECS Tuning | ||||
| -- | ตะแกรงกันชนด้านหน้า | 1 | 51110140255 | $50.50 | ENDED | Shop at ECS Tuning | ||||
| 03 | แผงปิดบันไดประตู ด้านซ้าย ลงสีพื้น | ECE & US | 1 | 51710392891 | $293.95 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | แผงปิดบันไดประตู ด้านขวา ลงสีพื้น | ECE & US | 1 | 51710392892 | $293.95 | ENDED, +core | Shop at ECS Tuning | |||
| สำหรับรถยนต์ที่มี ระบบควบคุมระยะการจอด (PDC) |
S508A=ไม่ |
|||||||||
| 04 | แผงป้องกันด้านหลัง ลงสีพื้น | 1 | 51120021931 | ENDED, +core | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ตัวยึด ด้านหลัง | 1 | 51120152925 | $13.25 | Shop at ECS Tuning | |||||
| สำหรับรถยนต์ที่มี ระบบควบคุมระยะการจอด (PDC) |
S508A=ใช่ |
|||||||||
| 04 | แผงป้องกันด้านหลัง ลงสีพื้น | 1 | 51120153271 | ENDED, +core | Shop at ECS Tuning | |||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | ตัวยึด ด้านหลัง | 1 | 51120152925 | $13.25 | Shop at ECS Tuning | |||||
| 05 | ตะแกรงกันชนด้านหน้า | 1 | 51110139106 | $60.00 | ENDED | Shop at ECS Tuning | ||||
| 06 | ตะแกรงกันชนด้านหน้า | 1 | 51110140255 | $50.50 | ENDED | Shop at ECS Tuning | ||||
| 07 | ตะแกรงหม้อน้ำ ด้านบน | 1 | 51130140259 | $67.50 | ENDED | Shop at ECS Tuning | ||||
| 08 | ชายบันได, ด้านซ้าย | 1 | 51710140257 | $6.25 | ENDED | Shop at ECS Tuning | ||||
| 08 | ชายบันได, ด้านขวา | 1 | 51710140258 | $6.25 | ENDED | Shop at ECS Tuning | ||||
| 09 | ที่ยึดป้ายทะเบียน | ECE | 1 | 51110141383 | $34.00 | ENDED | Shop at ECS Tuning | |||
| 10 | ที่ยึดป้ายทะเบียน | USA/JAPAN | 1 | 51110141384 | $43.75 | ENDED | Shop at ECS Tuning | |||
| 11 | ปลั๊กซีล | D=22MM | 1 | 51711855009 | $0.50 | Shop at ECS Tuning | ||||
| 12 | ตัวต่อแผง | 2 | 10/2001 | 63136920889 | $24.00 | Shop at ECS Tuning | ||||
| สำหรับรถยนต์ที่มี รุ่นประเทศสาธารณรัฐประชาชนจีน |
L8AAA=ไม่ |
|||||||||
| 13 | สปอยเลอร์ท้าย ทำสี | CODE - UNI/MET. | 1 | 51710140633 | $325.95 | ENDED, +core | Shop at ECS Tuning | |||
| เฉพาะใช้ร่วมกับ | ||||||||||
| 13 | สปอยเลอร์หลัง ลงสีพื้น | 1 | 51710021452 | $198.00 | ENDED, +core | Shop at ECS Tuning | ||||
| เฉพาะใช้ร่วมกับ | ||||||||||
| 13 | สปอยเลอร์ท้าย ทำสี | CHILLI RED 851 | 1 | 51710146087 | $325.95 | ENDED, +core | Shop at ECS Tuning | |||
| เฉพาะใช้ร่วมกับ | ||||||||||
| 13 | สปอยเลอร์ท้าย ทำสี | INDY BLUE 862 | 1 | 51710146089 | $200.95 | ENDED, +core | Shop at ECS Tuning | |||
| เฉพาะใช้ร่วมกับ | ||||||||||
| 13 | สปอยเลอร์ท้าย ทำสี | RACINGGREEN 895 | 1 | 51710146091 | $200.95 | ENDED, +core | Shop at ECS Tuning | |||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | สารยึดติด 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| สำหรับรถยนต์ที่มี รุ่นประเทศสาธารณรัฐประชาชนจีน และ กระจกมองข้าง/หลังคา สีขาว |
L8AAA=ไม่ S382A=ใช่ |
|||||||||
| 13 | สปอยเลอร์ท้าย ทำสี | ASPEN WHITE 899 | 1 | 51710146086 | $325.95 | ENDED | Shop at ECS Tuning | |||
| เฉพาะใช้ร่วมกับ | ||||||||||
| -- | สารยึดติด 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 14 | สารยึดติด 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 15 | คลิป | 2 | 07137073915 | $0.75 | Shop at ECS Tuning | |||||
| 16 | คลิป | SCHWARZ / BLACK | 3 | 07131480419 | $0.75 | Shop at ECS Tuning | ||||
| 17 | หมุดขยาย | 20 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 18 | หมุดขยาย | 6 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 19 | กระจังหน้าประดับคล้ายอะลูมิเนียม | 1 | 51120147451 | $44.00 | ENDED | Shop at ECS Tuning | ||||
| 20 | ตัวยึด ด้านหลัง | 1 | 51120152925 | $13.25 | Shop at ECS Tuning | |||||
| 21 | ฝาครอบไฟตัดหมอก | SCHWARZ MATT | 1 | 51110151570 | $79.00 | ENDED | Shop at ECS Tuning | |||
| 22 | น็อตสำหรับสายรัดรูปตัว C | M6 | 2 | 07131502288 | $0.64 | Shop at ECS Tuning | ||||
| 23 | สกรูหัวหกเหลี่ยมพร้อมหน้าแปลน | 2 | 10/2005 | 07136800836 | $1.18 | ENDED | Shop at ECS Tuning | |||
| 23 | โบลท์หัวหกเหลี่ยม | 2 | 07146986088 | $0.45 | Shop at ECS Tuning | |||||
| 24 | แผ่นปิดกรอบประตู | 2 | 51710154680 | $35.25 | ENDED | Shop at ECS Tuning | ||||
| 25 | แผ่นปิด, หูลาก, ทำสีแล้ว | CODE - UNI/MET. | 1 | 51120029929 | $48.94 | ENDED, +core | Shop at ECS Tuning | |||
| 25 | ที่ปิดหูลาก, ลงสีพื้นแล้ว | 1 | 51127048261 | $8.00 | Shop at ECS Tuning | |||||
| 26 | ตัวยึดการติด (ชุด) | 1 | 51110397175 | $35.00 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
