ระบบหล่อเย็น - ท่อน้ำ for BMW MINI R50 Cooper (2000)

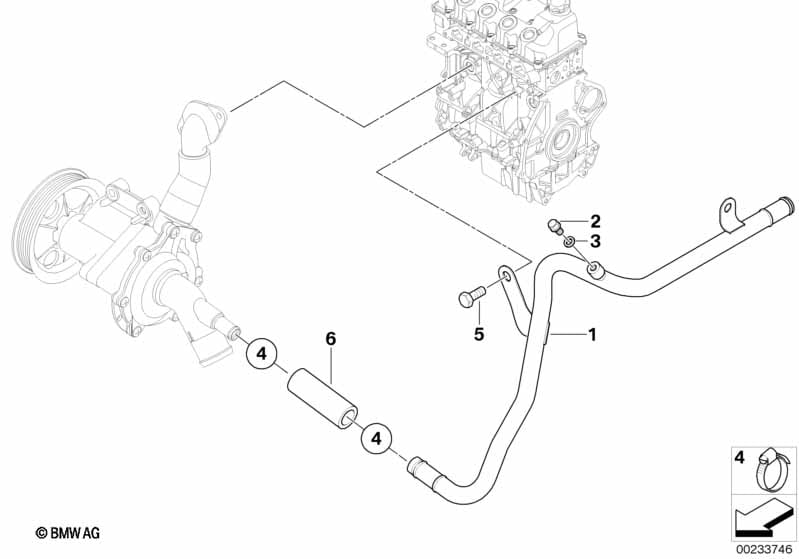

This ระบบหล่อเย็น - ท่อน้ำ technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | รายละเอียด | Supp. | จำนวน | จาก | Up To | Part Number | ราคา | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | ท่อทำความร้อนและน้ำหล่อเย็น ดูที่ กลุ่มหลัก 17 และ 64 |
|||||||||
| 01 | ท่อน้ำหล่อเย็น | 1 | 11537629401 | Shop at ECS Tuning | ||||||
| 02 | สกรูไล่ลม | 1 | 11537577651 | $5.95 | Shop at ECS Tuning | |||||
| 04 | แคลมป์รัดท่อ | 2 | 11537514987 | $1.81 | Shop at ECS Tuning | |||||
| 05 | โบลท์หัวหกเหลี่ยม | 8X1,25X20 | 1 | 11537513016 | $0.88 | Shop at ECS Tuning | ||||
| 06 | ท่อน้ำ | 1 | 11537514986 | $30.20 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper ระบบหล่อเย็น - ท่อน้ำ?
- This technical diagram illustrates the ระบบหล่อเย็น - ท่อน้ำ within the เครื่องยนต์ group for the MINI R50 Cooper produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the ท่อน้ำหล่อเย็น (Part #11537629401).
- Which models use the hardware listed in this ระบบหล่อเย็น - ท่อน้ำ?
- The hardware and components featured in the ระบบหล่อเย็น - ท่อน้ำ are specific to the MINI R50 Cooper produced during 2000. These technical specifications ensure that parts like the ท่อน้ำหล่อเย็น (11537629401) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the ระบบหล่อเย็น - ท่อน้ำ assembly?
- Each item in the ระบบหล่อเย็น - ท่อน้ำ corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the ท่อน้ำหล่อเย็น by locating its position on the schematic, which then links to the official BMW part number 11537629401 for the เครื่องยนต์ section.
